Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tools 205-098, 205-100 and 205-278, install the inner and outer bearing cups.
- Check to see if a 0.038 mm (0.0015 inch) feeler gauge can be inserted between the cups and the rear hub at any point around each cup. Reseat the bearing cups, if necessary.

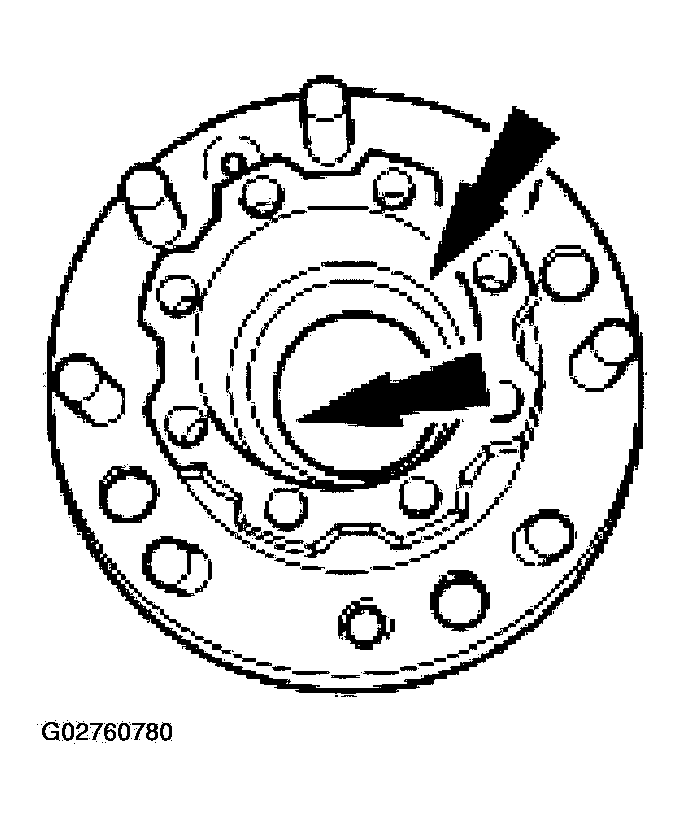

Fig 1: Installing Inner And Outer Bearing Cups
Courtesy of FORD MOTOR CO.
Install the inner rear wheel bearing in the rear hub.
Install a new rear hub seal.
- Use a suitable seal installer.

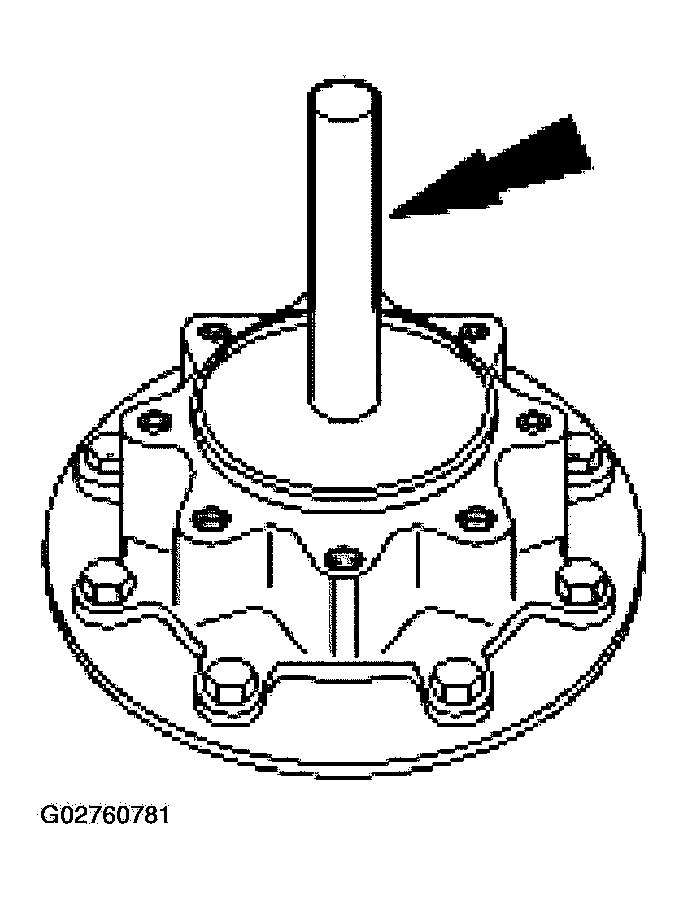

Fig 2: Installing Rear Hub Seal
Courtesy of FORD MOTOR CO.
Position the rear brake disc on the rear hub and install the bolts.
- Tighten to 104 Nm (77 lb-ft).

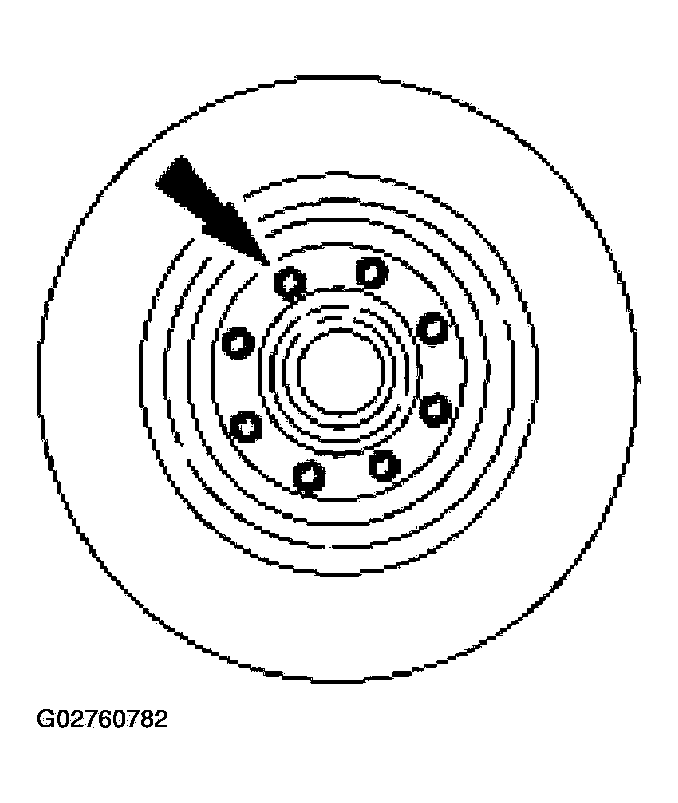

Fig 3: Installing Rear Hub Bolts
Courtesy of FORD MOTOR CO.
Install the rear hub and brake disc assembly. For additional information, refer to HUB .
