Driveshaft - Rear, Three-Piece: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Connect the front driveshaft to the transmission. Install the new bolts.
- Hand-tighten only; do not tighten at this time.
Fig 1: Removing Front Driveshaft Bolts
Courtesy of FORD MOTOR CO.
Position the center support bearing and install the bolts.
- Hand-tighten only; do not tighten at this time.
Fig 2: Installing Center Support Bearing Bolts
Courtesy of FORD MOTOR CO.

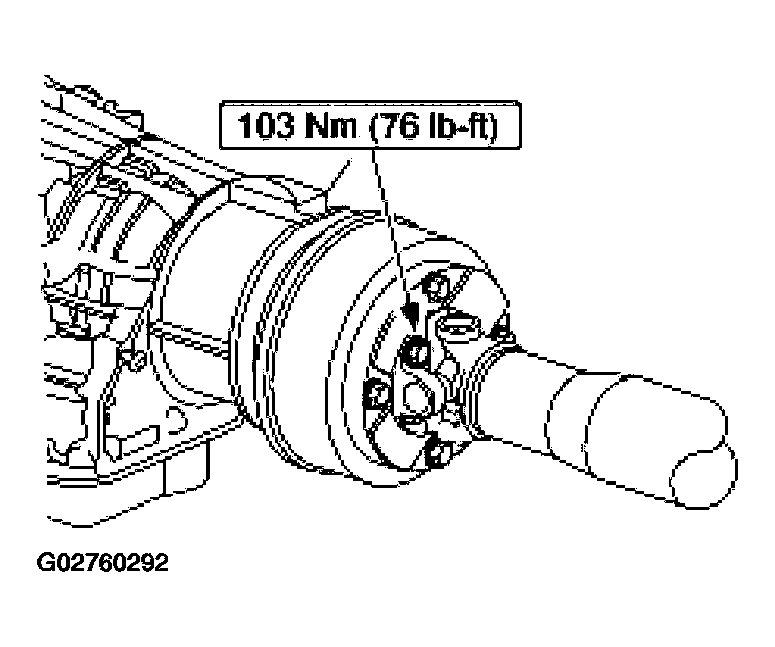

Tighten the driveshaft to parking brake drum bolts and the driveshaft center bearing bolts.

Fig 3: Tightening Driveshaft Center Bearing Bolts
Courtesy of FORD MOTOR CO.
Position the rear driveshaft assembly and install the center support bearing bolts.
- Hand-tighten only; do not tighten at this time.
Fig 4: Installing Center Support Bearing Bolts
Courtesy of FORD MOTOR CO.

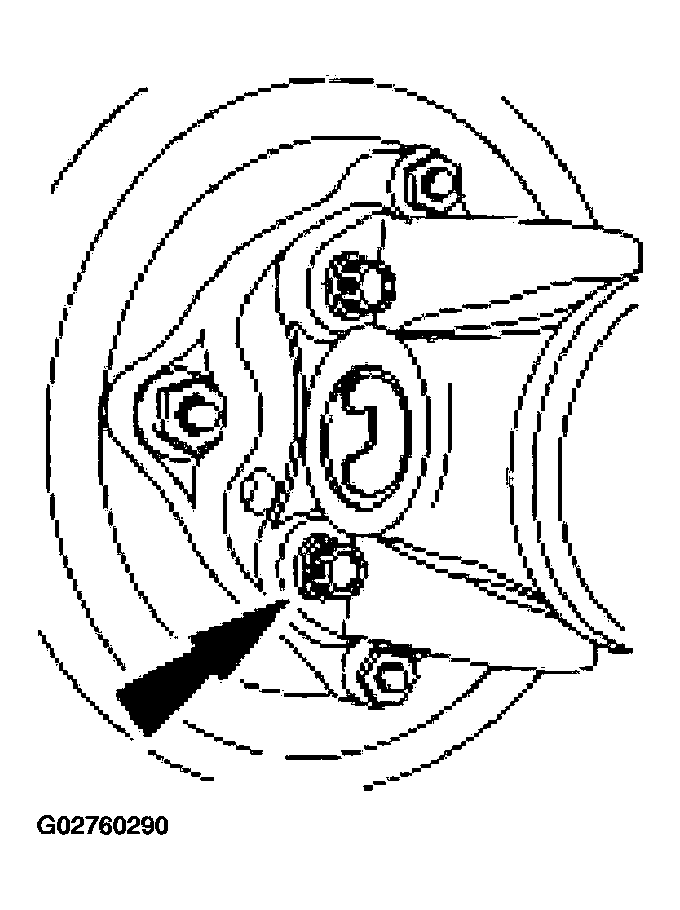

Connect the rear driveshaft assembly to the front driveshaft. Install the new retainers and bolts.

Fig 5: Installing Rear Driveshaft Assembly Bolts
Courtesy of FORD MOTOR CO.

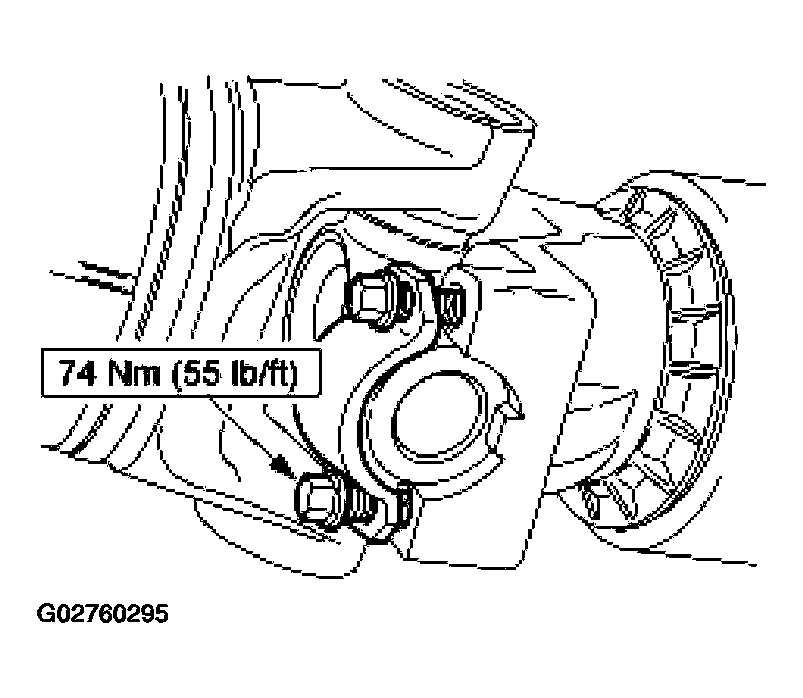

Connect the rear driveshaft assembly to the rear axle. Install the new retainers and bolts.

Fig 6: Installing Rear Driveshaft Assembly Bolts
Courtesy of FORD MOTOR CO.

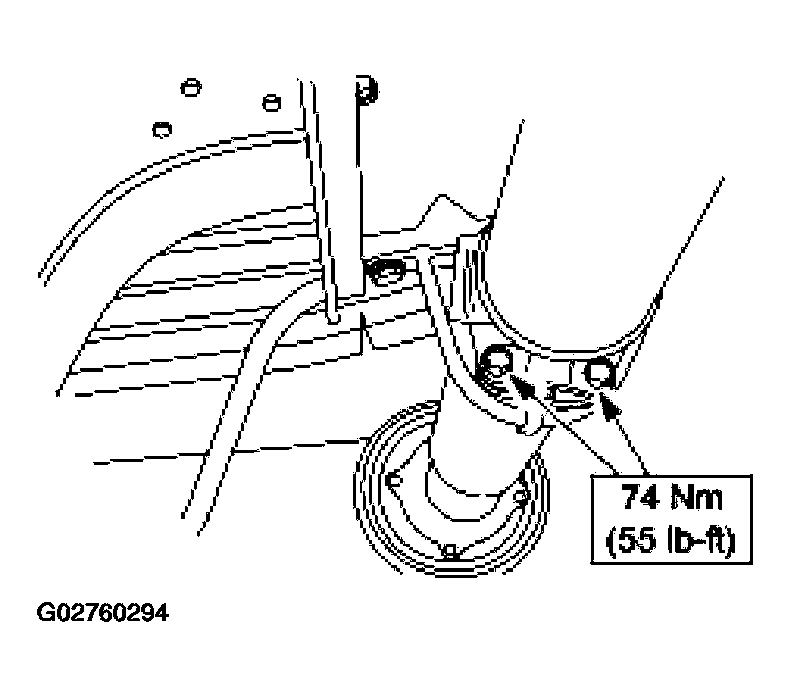

Tighten the driveshaft center support bearing bolts.

Fig 7: Tightening Driveshaft Center Support Bearing Bolts
Courtesy of FORD MOTOR CO.
