Driveshaft - Rear, One-Piece: Installation
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the extension housing seal for damage. Install a new seal as necessary. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R100 or AUTOMATIC TRANSAXLE/TRANSMISSION - 4R70W/4R75 .

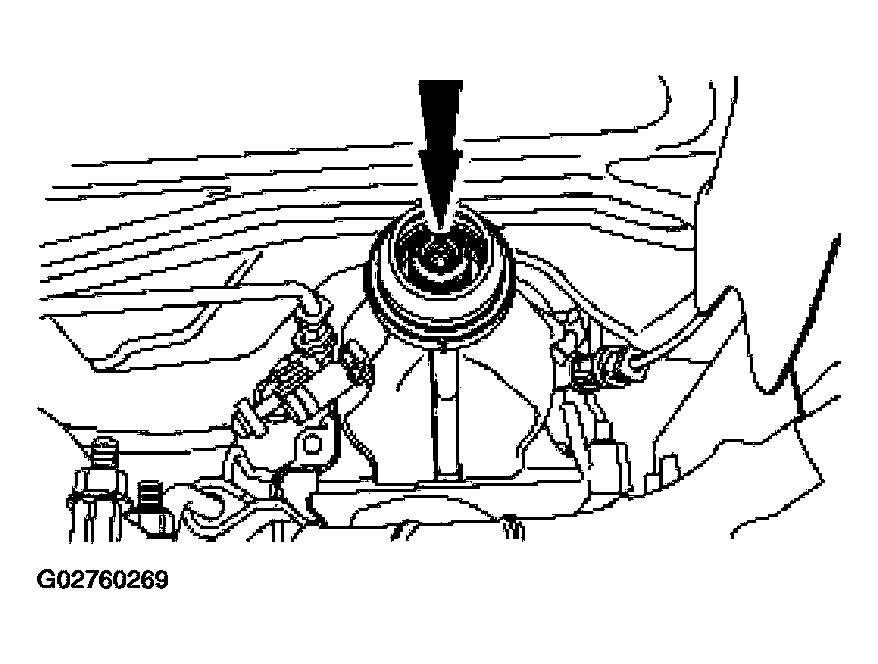

- Check to see if a paint mark is present on the front of the driveshaft and on the end of the transmission output shaft.
- Vehicles equipped with 4R70W transmissions have the paint mark.
- Vehicles equipped with 4R100 transmissions do not have the paint mark.
- Lubricate the slip-yoke spline with grease.
- Install the driveshaft.

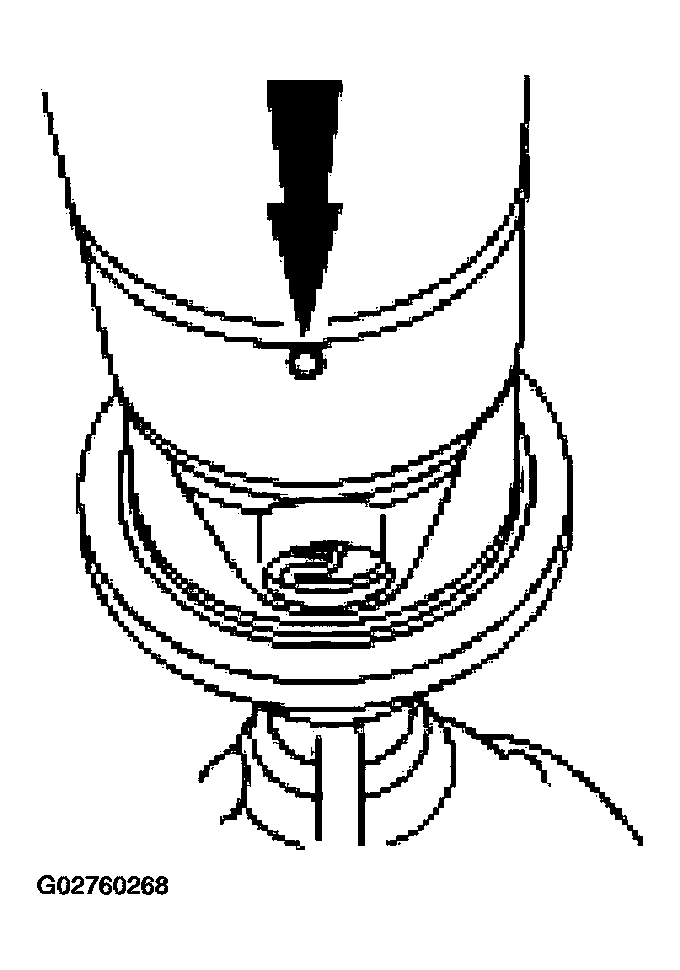

- Preferred method - align the factory-made paint marks on the output shaft and driveshaft and position the driveshaft in the transmission.
- Alternate method - align the index-marks and position the driveshaft in the transmission.
- Preferred method - align the factory-made paint marks on the output shaft and driveshaft and position the driveshaft in the transmission.
- Position the driveshaft flange yoke on the pinion flange with the index marks aligned, and install the bolts.
NOTE:
Depending on the paint markings, there are two methods of indexing the driveshaft and the output shaft.
CAUTION:
Install the driveshaft with new bolts. If new bolts are not available, apply sealer to the threads of the original bolts.
CAUTION:

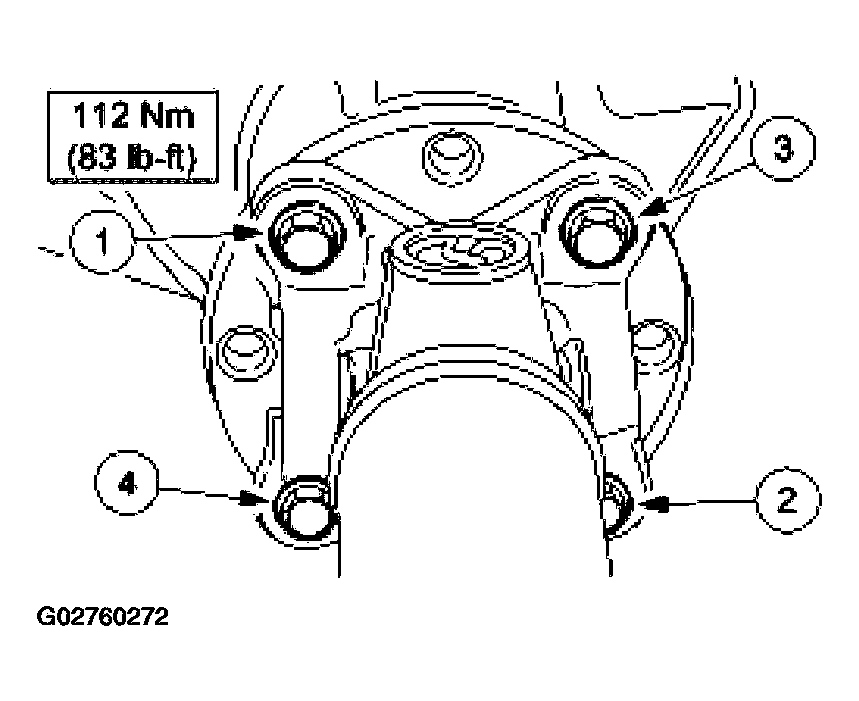

The driveshaft flange yoke fits tightly on the pinion flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in a cross pattern as shown.
