Driveshaft - Rear Two-Piece: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Using the index-marks, position the driveshaft.
Install the four coupling shaft bolts.
- Release the parking brake.

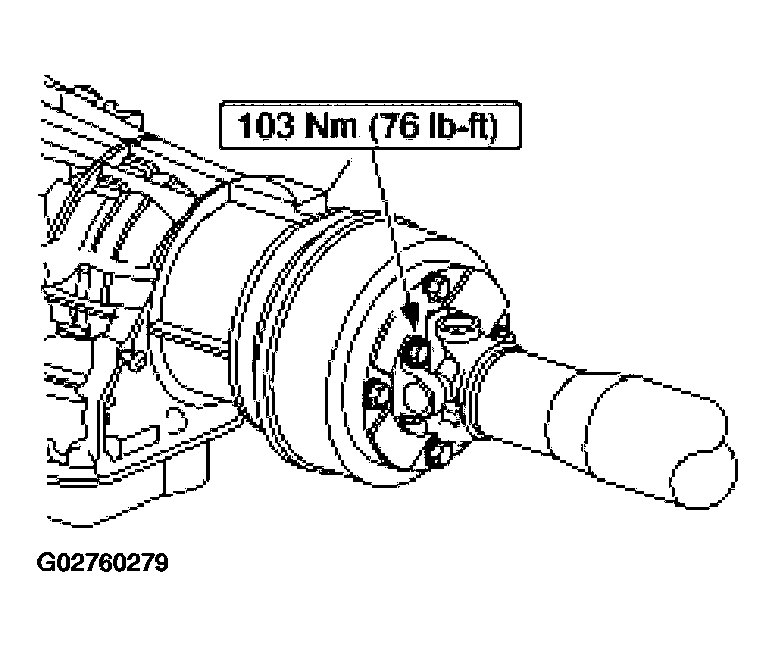

Fig 1: Installing Four Coupling Shaft Bolts
Courtesy of FORD MOTOR CO.
Support the coupling shaft, and position the center bearing and bracket.

Fig 2: Supporting Coupling Shaft
Courtesy of FORD MOTOR CO.
Install the center bearing bracket bolts.

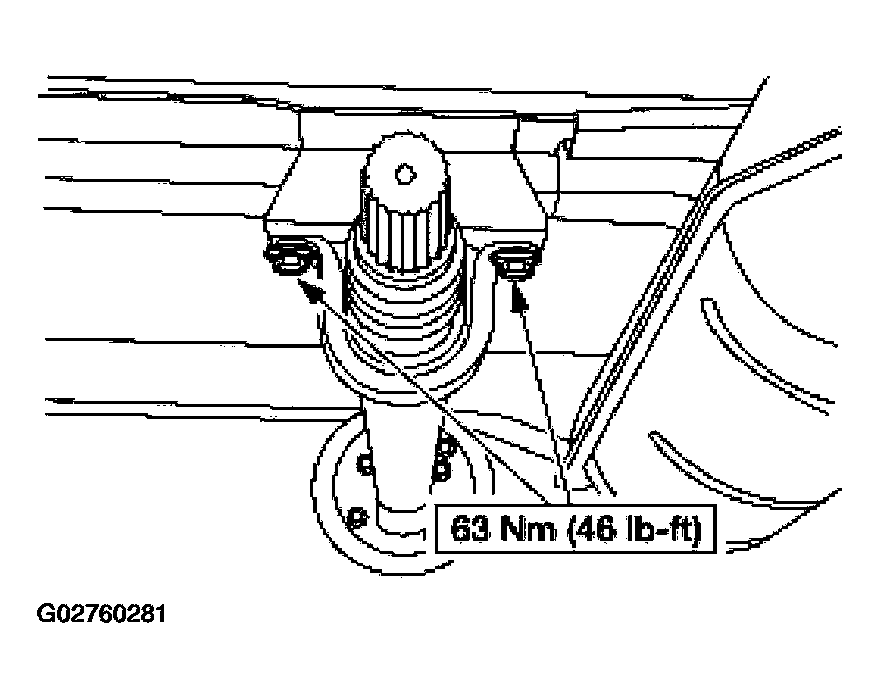

Fig 3: Installing Center Bearing Bracket Bolts
Courtesy of FORD MOTOR CO.
Install the rear driveshaft section.

Fig 4: Installing Rear Driveshaft Section
Courtesy of FORD MOTOR CO.
Align the index-marks and install the four driveshaft-to-rear axle bolts.
- If new bolts are not available, coat the threads of the original bolts with sealer.

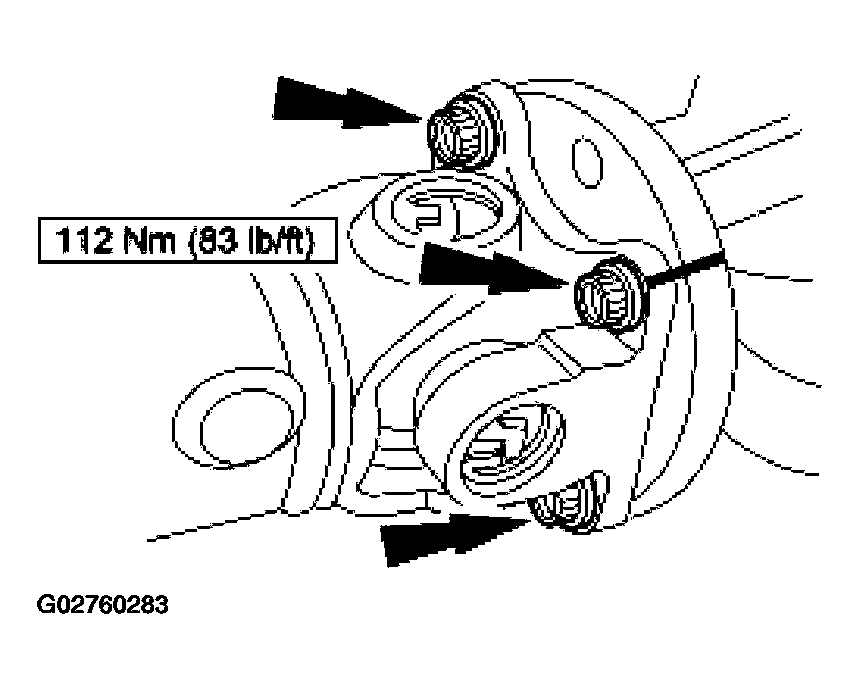

Fig 5: Aligning Index-Marks And Install Driveshaft-To-Rear Axle Bolts
Courtesy of FORD MOTOR CO.
Remove the supports, and lower the vehicle.
