Driveshaft Slip Yoke: Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Position the new small driveshaft slip-yoke boot clamp on the driveshaft stub shaft.
Slide the small opening end of the slip-yoke boot on the driveshaft stub shaft, as far as it will travel.

Fig 1: Sliding Small Opening End Of Slip-Yoke Boot On Driveshaft Stub Shaft
Courtesy of FORD MOTOR CO.
Using the special tool, crimp the driveshaft slip-yoke boot clamp.

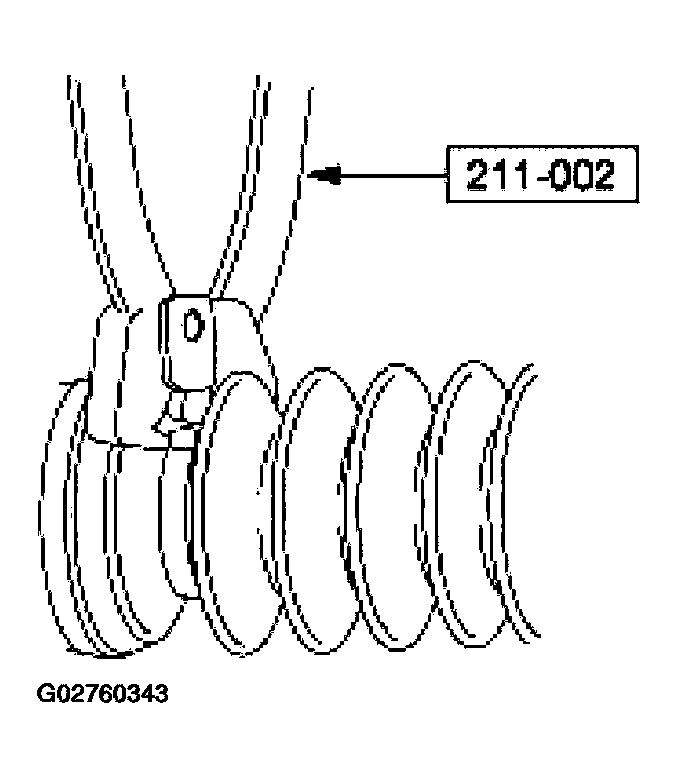

Fig 2: Crimping Driveshaft Slip-Yoke Boot Clamp
Courtesy of FORD MOTOR CO.
Install the driveshaft slip-yoke on the driveshaft.
1. Pull the slip-yoke boot toward the driveshaft. Lubricate the driveshaft splines with approximately 10 grams (0.24 oz) of lubricant.
2. Position the new large slip-yoke boot clamp.
3. Align the blind splines, and install the driveshaft slip-yoke on the driveshaft.
Fig 3: Installing Driveshaft Slip-Yoke On Driveshaft
Courtesy of FORD MOTOR CO.
Set the driveshaft assembled length to specification.
1. Remove any excess grease from the slip-yoke boot and driveshaft slip-yoke surfaces.
2. Position the slip-yoke boot in the slip-yoke boot groove.
3. Set the driveshaft assembled length to specification.
  - Measure from the stub shaft weld to the U-joint centerline.
4. Bleed the air from the slip-yoke boot.
Fig 4: Positioning Slip-Yoke Boot In Slip-Yoke Boot Groove
Courtesy of FORD MOTOR CO.
Using the special tool, crimp the large driveshaft slip-yoke boot clamp.

Fig 5: Crimping Large Driveshaft Slip-Yoke Boot Clamp
Courtesy of FORD MOTOR CO.
