Universal Joints
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

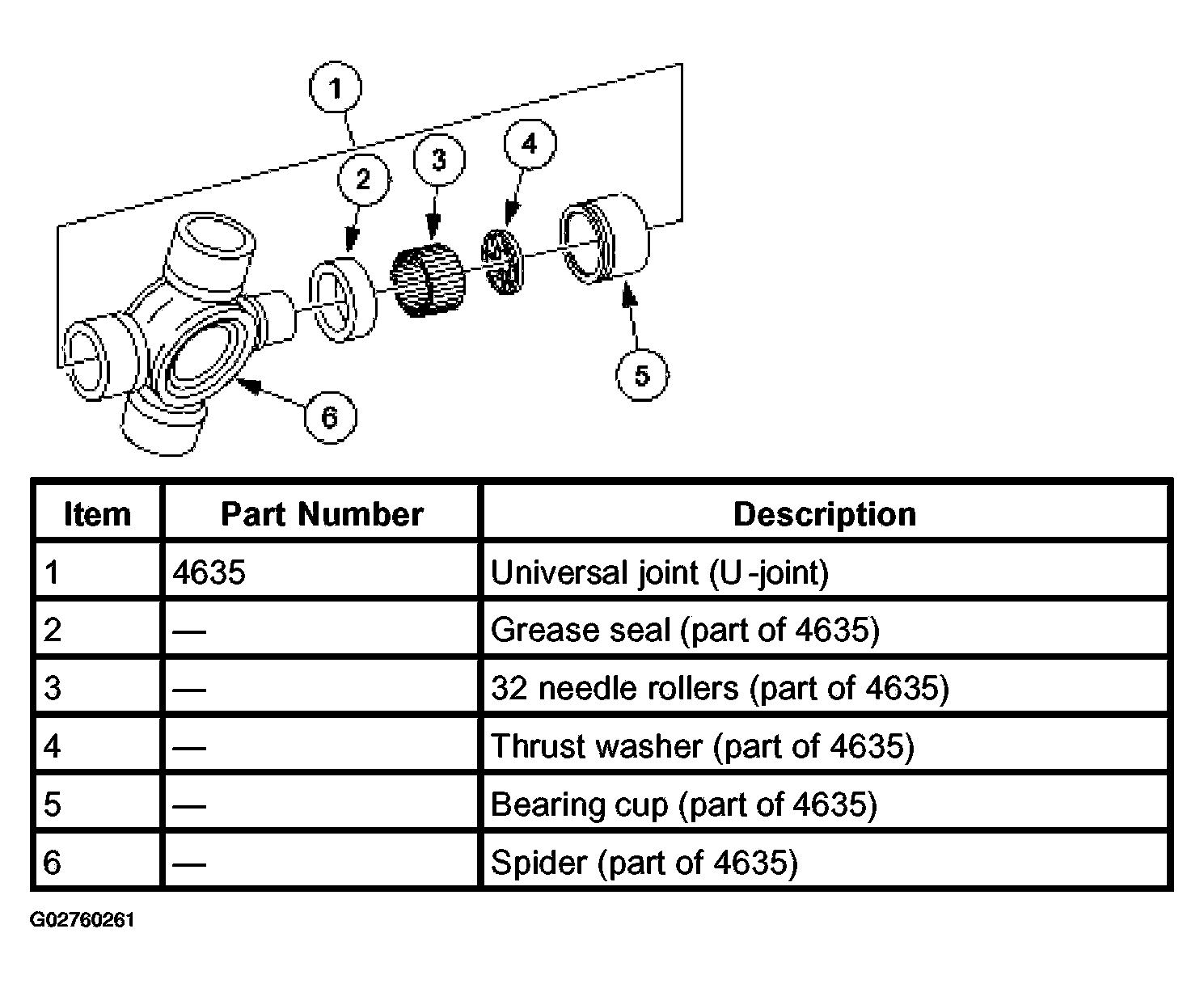

Universal joints have the following:
- A lubed-for-life design.
- Equipped with nylon thrust washers located at the base of each bearing cup, which control end play, positions the needle bearings and improves grease movement.
- Size 1350 for E150-E350, size 1410 for E450, and size 1480 for E550.
UNIVERSAL JOINT (U-JOINT) IDENTIFICATION
| Series | Diameter 1 (Spider outer diameter with bearings cups fully seated) | Diameter 2 (bearing cup outer diameter) |
|---|---|---|
| 1350 | 91.9 (3.62) | 30.2 (1.19) |
| 1440 | 106.4 (4.19) | 30.2 (1.19) |
| 1480 | 106.4 (4.19) | 35.1 (1.38) |
