Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear halfshafts. For additional information, refer to REAR AXLE HALFSHAFTS, BEARINGS AND SEALS .
  3. Index-mark the driveshaft flange to the rear axle pinion flange.

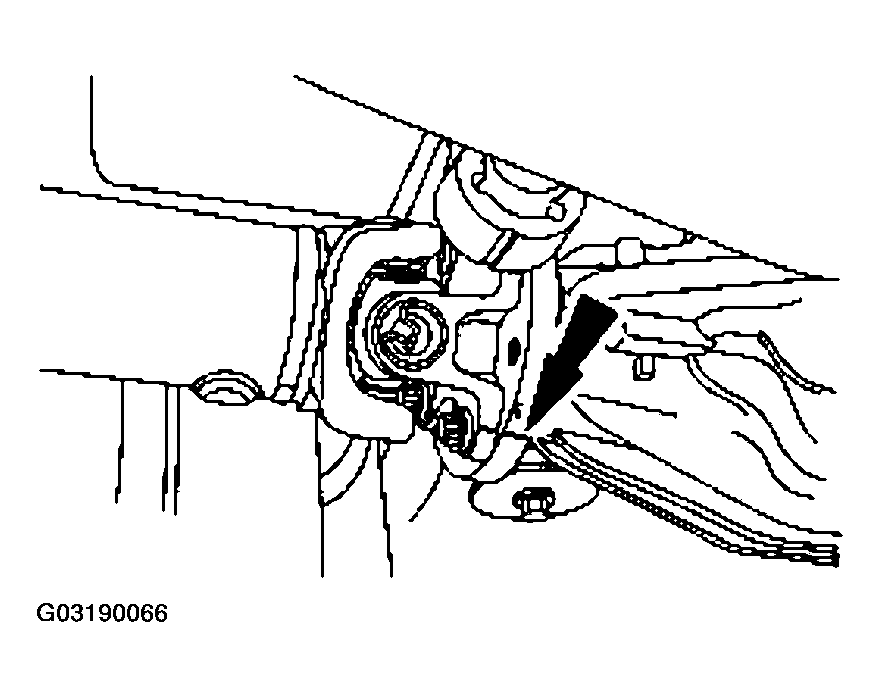

    Fig 1: Indexing Rear Axle Pinion Flange
    G03190066Courtesy of FORD MOTOR CO.
  4. Remove the four rear axle flange bolts.

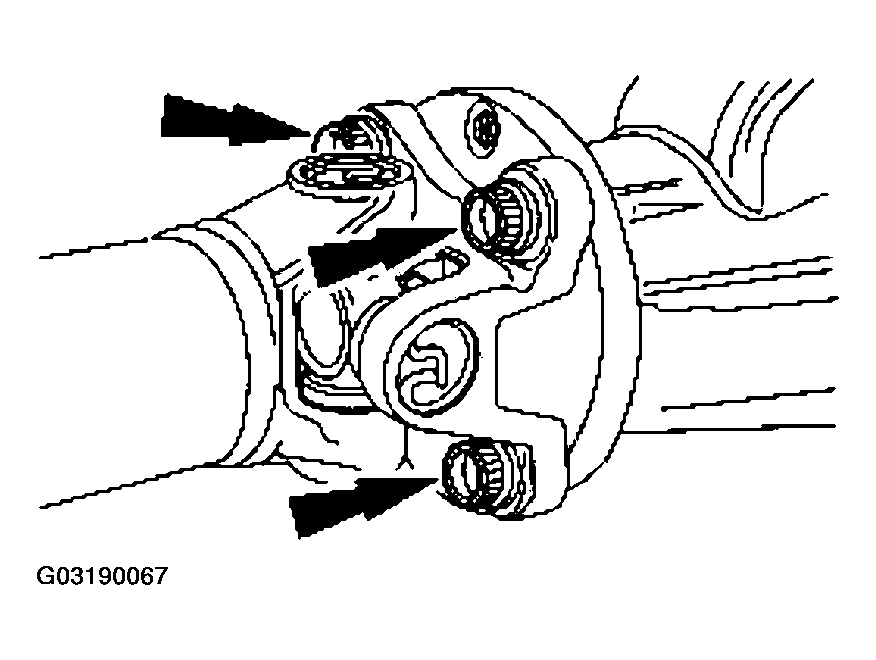

    Fig 2: Removing Four Driveshaft Bolts
    G03190067Courtesy of FORD MOTOR CO.
    CAUTION: The driveshaft flange fits tightly on the rear axle pinion flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft flange from the pinion flange. Pry only in the area shown, with a suitable tool, to disconnect the driveshaft flange from the pinion flange.

    Using a suitable tool as shown, disconnect the driveshaft flange from the rear axle pinion flange and position aside using mechanics wire to support.

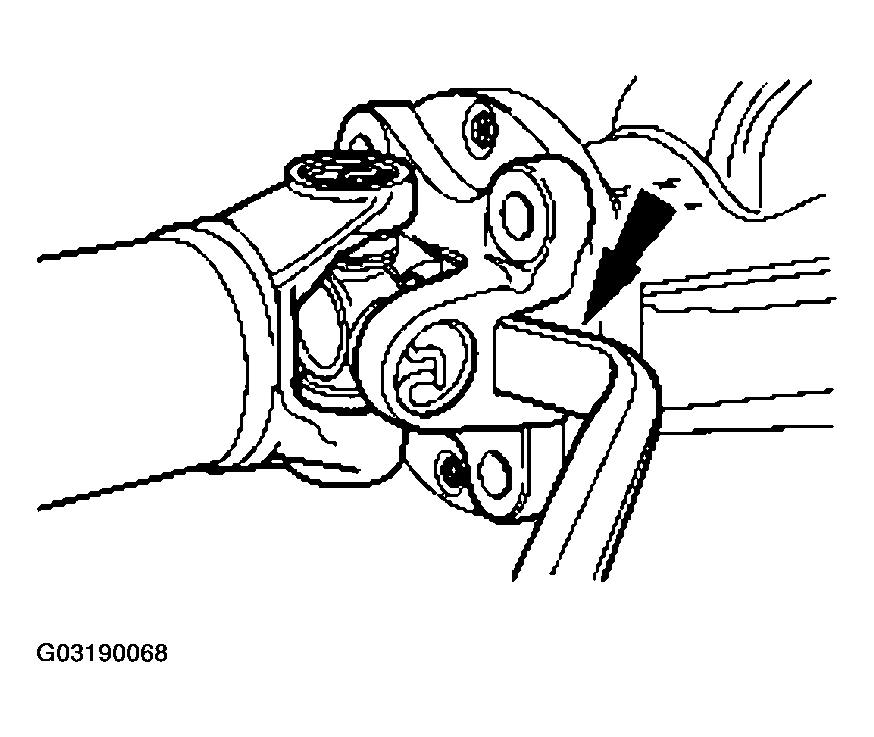

    Fig 3: Disconnecting Driveshaft Flange From Pinion Flange
    G03190068Courtesy of FORD MOTOR CO.
  5. Position a suitable hydraulic jack to the axle housing. Securely strap the jack to the housing.
  6. Remove the parts in the order indicated in the following illustration and table.

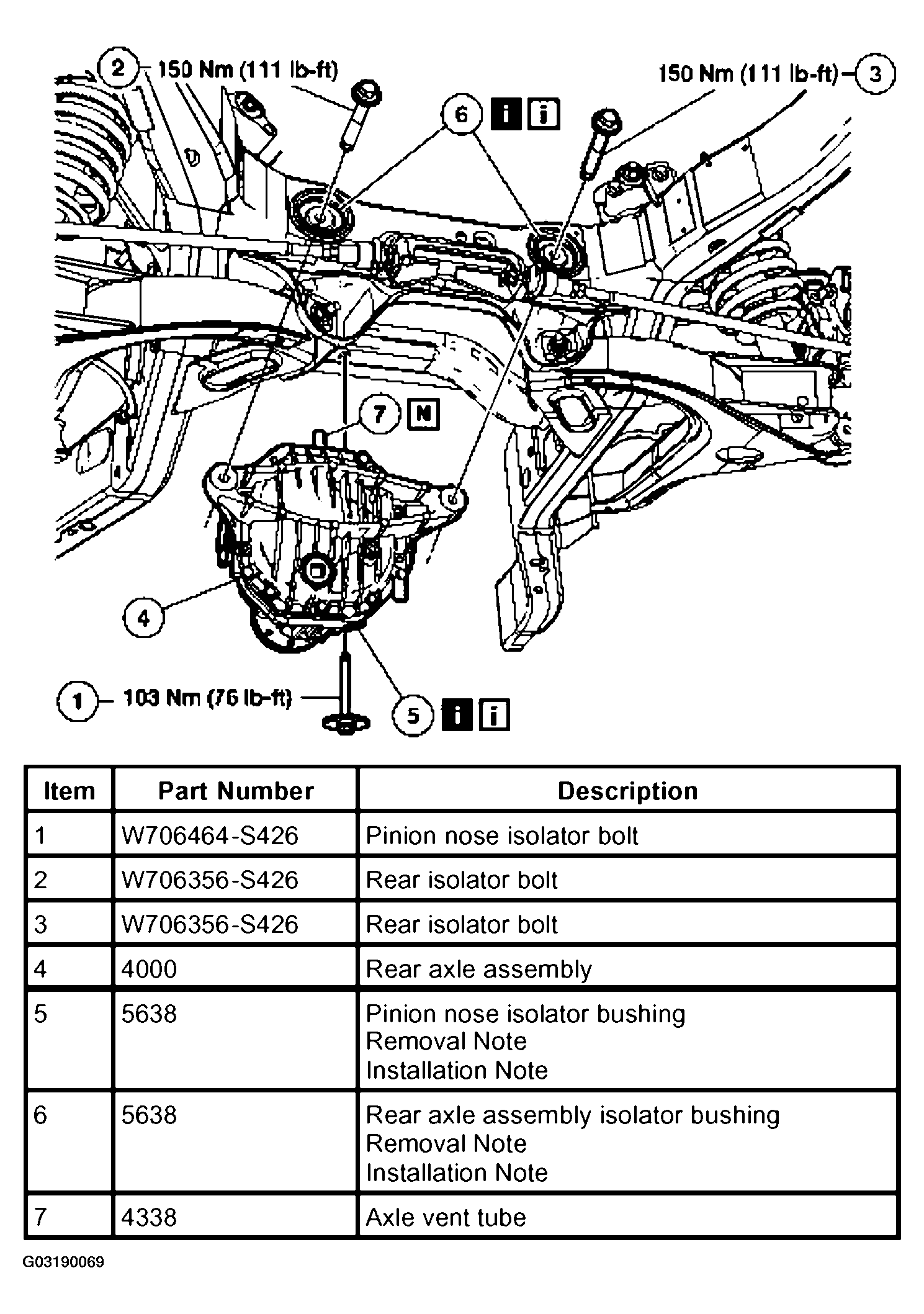

    Fig 4: Removing Axle Housing
    G03190069Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.

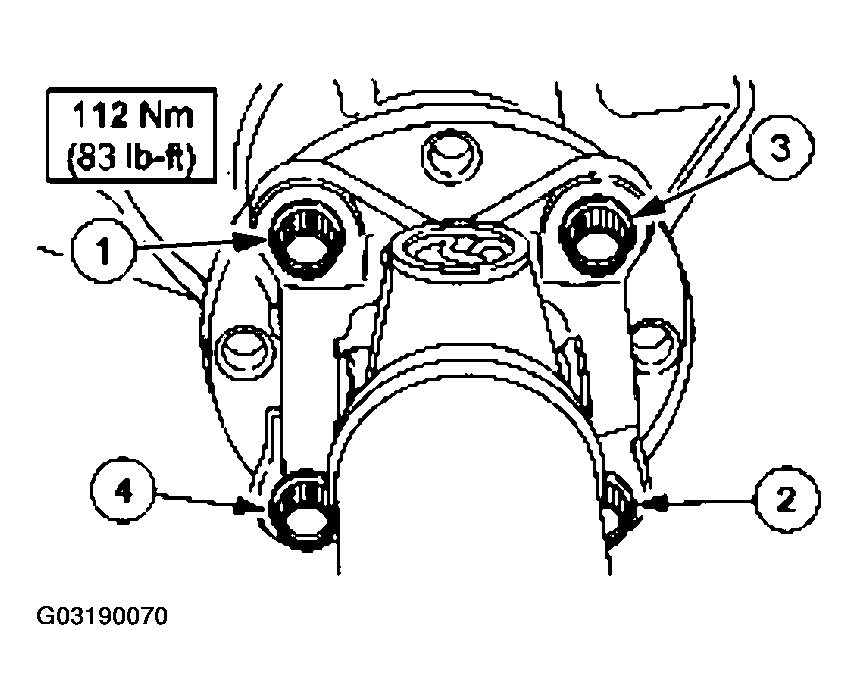

    Fig 5: Installing Four Driveshaft Bolts
    G03190070Courtesy of FORD MOTOR CO.
  8. Fill the axle with the specified quantity of the specified lubricant. For additional information, refer to the SPECIFICATIONS .

Item 5: Pinion Nose Isolator Bushing Removal Note

  1. Using the special tools, remove and discard the bushing.
    Fig 6: Removing Bushing Using Special Tools
    G03190071Courtesy of FORD MOTOR CO.

Item 6: Rear Axle Assembly Isolator Bushing Removal Note

  1. Using the special tool, draw the isolator from the frame pocket.

Item 6: Rear Axle Assembly Isolator Bushing Installation Note

  1. Using the special tool, draw the isolator into the frame pocket.
    • There is no orientation requirement for the frame mounted isolators.

Item 5: Pinion Nose Isolator Bushing Installation Note

  1. Insert the rear axle differential pinion nose isolator bushing and make sure the notches are aligned forward and aft.
    Fig 7: Inserting Rear Axle Differential Pinion Nose Isolator Bushing
    G03190072Courtesy of FORD MOTOR CO.
  2. Using the special tool, install the rear axle differential pinion nose isolator bushing.
    Fig 8: Installing Rear Axle Differential Pinion Nose Isolator Bushing
    G03190073Courtesy of FORD MOTOR CO.
