Fluid Drain and Fill

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle drain plug.
  2. Install the drain plug and tighten the drain plug to 34 Nm (25 lb-ft).
  3. Fill the axle to the bottom of the fill plug hole.
  4. Install the fill plug and tighten the fill plug to 34 Nm (25 lb-ft).
  5. Remove the rear wheel speed sensor.
    1. Disconnect the rear wheel speed sensor electrical connector.
    2. Remove the bolt.
    3. Remove the rear wheel speed sensor.

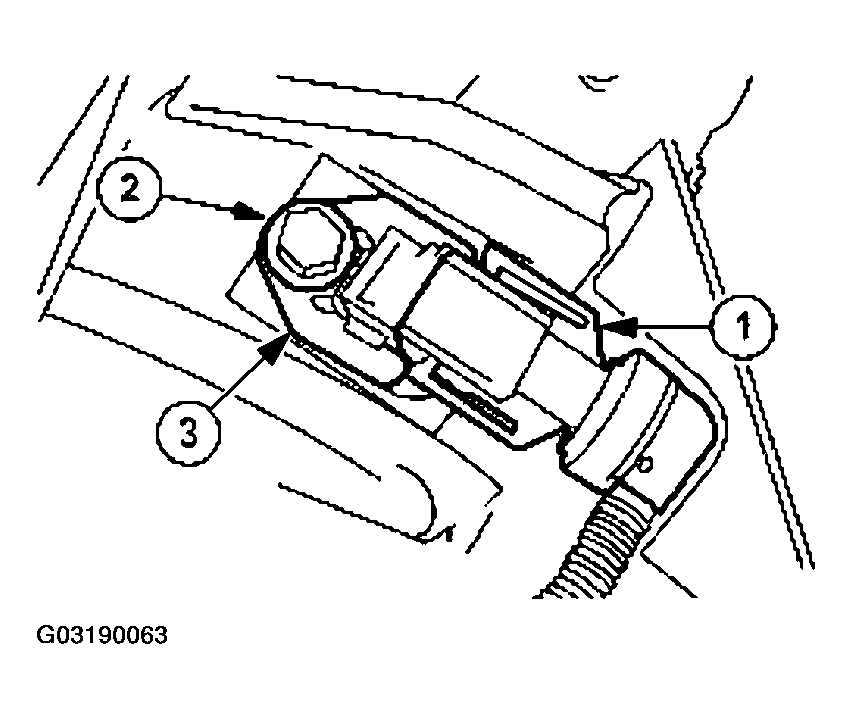

    Fig 1: Removing Rear Wheel Speed Sensor
    G03190063Courtesy of FORD MOTOR CO.
  6. Add one pint of fluid.
  7. Install the ABS sensor.

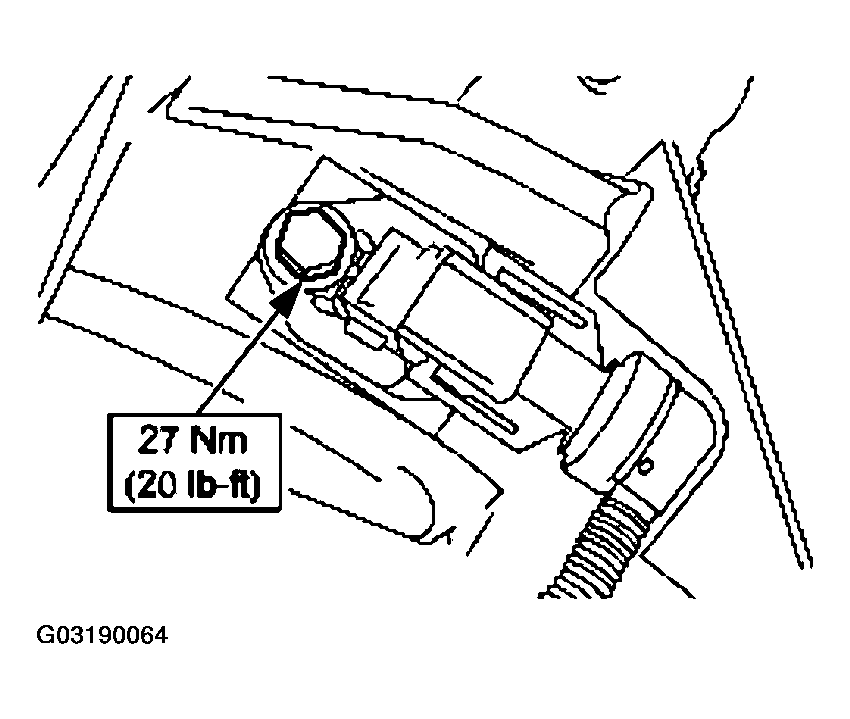

    Fig 2: Installing ABS Sensor
    G03190064Courtesy of FORD MOTOR CO.
