Checking Differential Ring Gear Backlash

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential assembly.
  2. Remove the differential housing cover.
  3. Secure the differential assembly in a holding fixture.
  4. Using a suitable dial indicator and the special tool, measure and record the differential ring gear backlash in 4 opposing points on the ring gear.

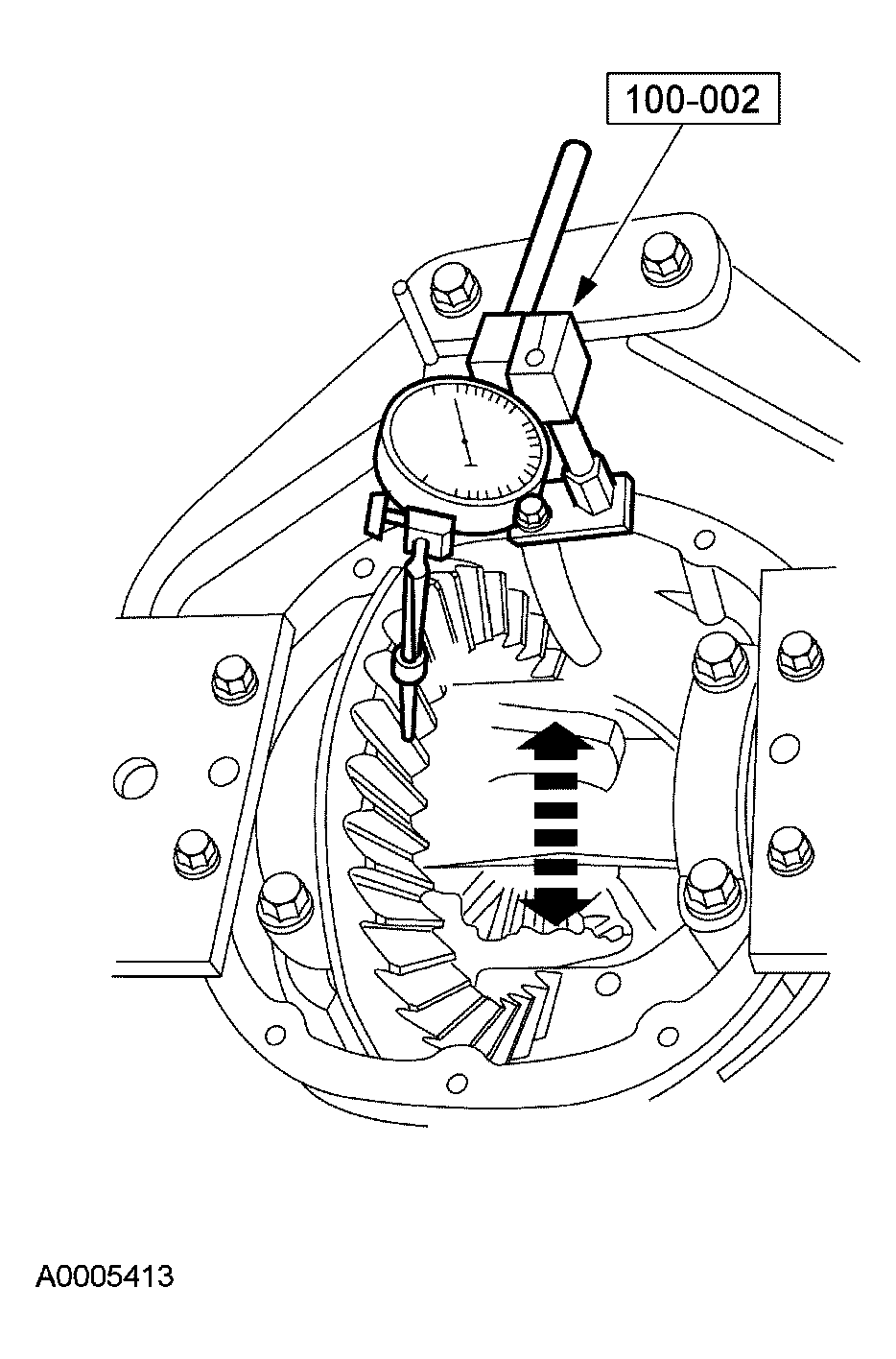

Fig 1: Measuring Differential Ring Gear Backlash
G04118366Courtesy of FORD MOTOR CO.
