Rear Door Handle

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION CHART

Item Specification
Multi-Purpose Grease Spray XL-5 ESB-M1C93-B
NOTE: RH side shown, LH side similar.
  1. Remove the rear door trim panel. For additional information, refer to REAR DOOR TRIM PANEL .
  2. Position the watershield aside.
  3. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PART REMOVAL STEPS

    Part Steps
    Exterior door handle 1-3
    Rear door latch 1, 4-10
    Door lock actuator 1, 4-12
    Rear door ajar switch 1, 4-11

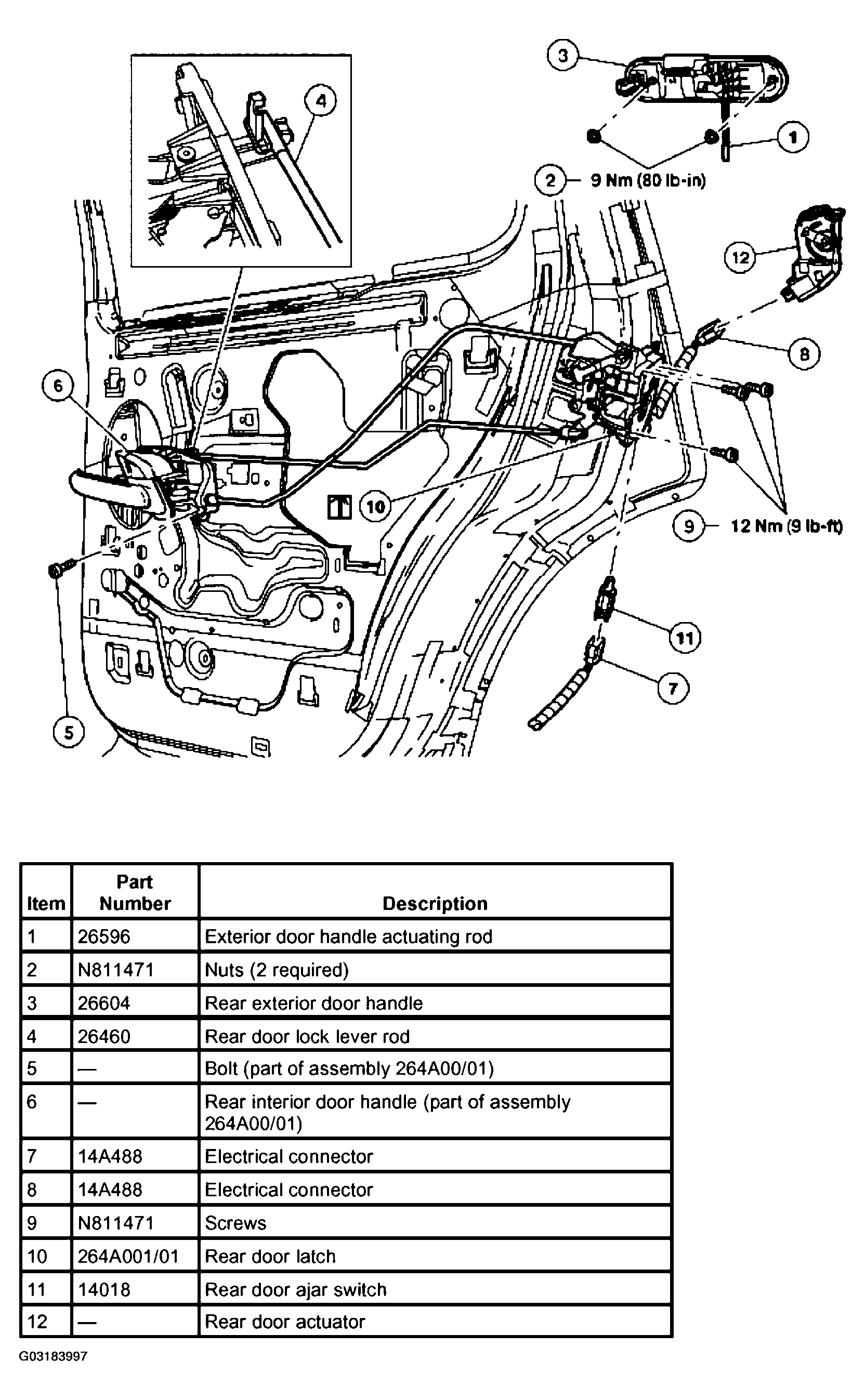

    Fig 1: Removing Bolts Of Rear Door Handle
    G03183997Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
