Hood Latch: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
Multi-Purpose Grease Spray XL-5 ESB-M1C93-B
  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PART REMOVAL STEPS

    Part Steps
    Hood latch 1-4
    Hood latch release cable assembly 1-9

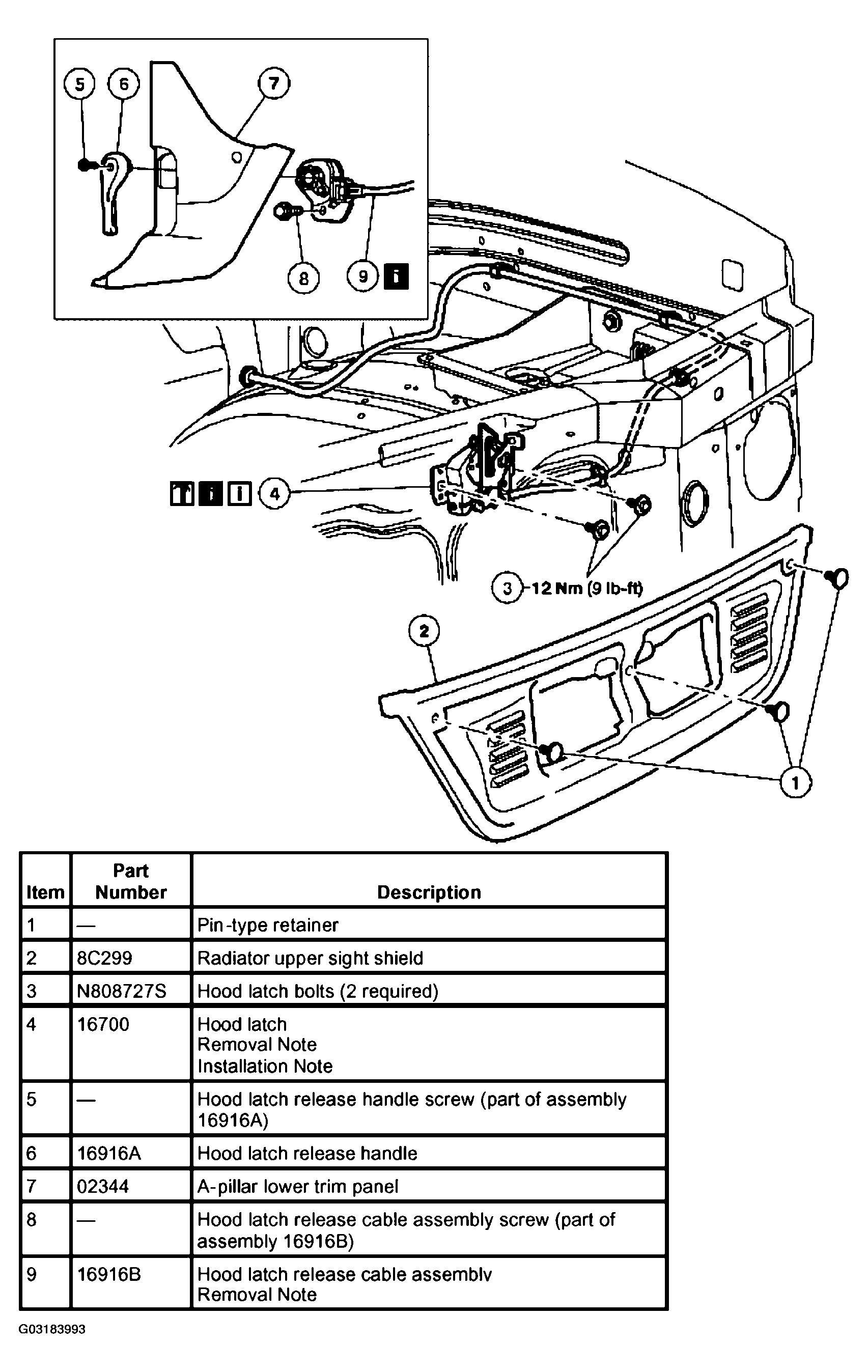

    Fig 1: Removing Hood Latch
    G03183993Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
