Driver (C505) and Passenger (C609) Door Lock Control Switches

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

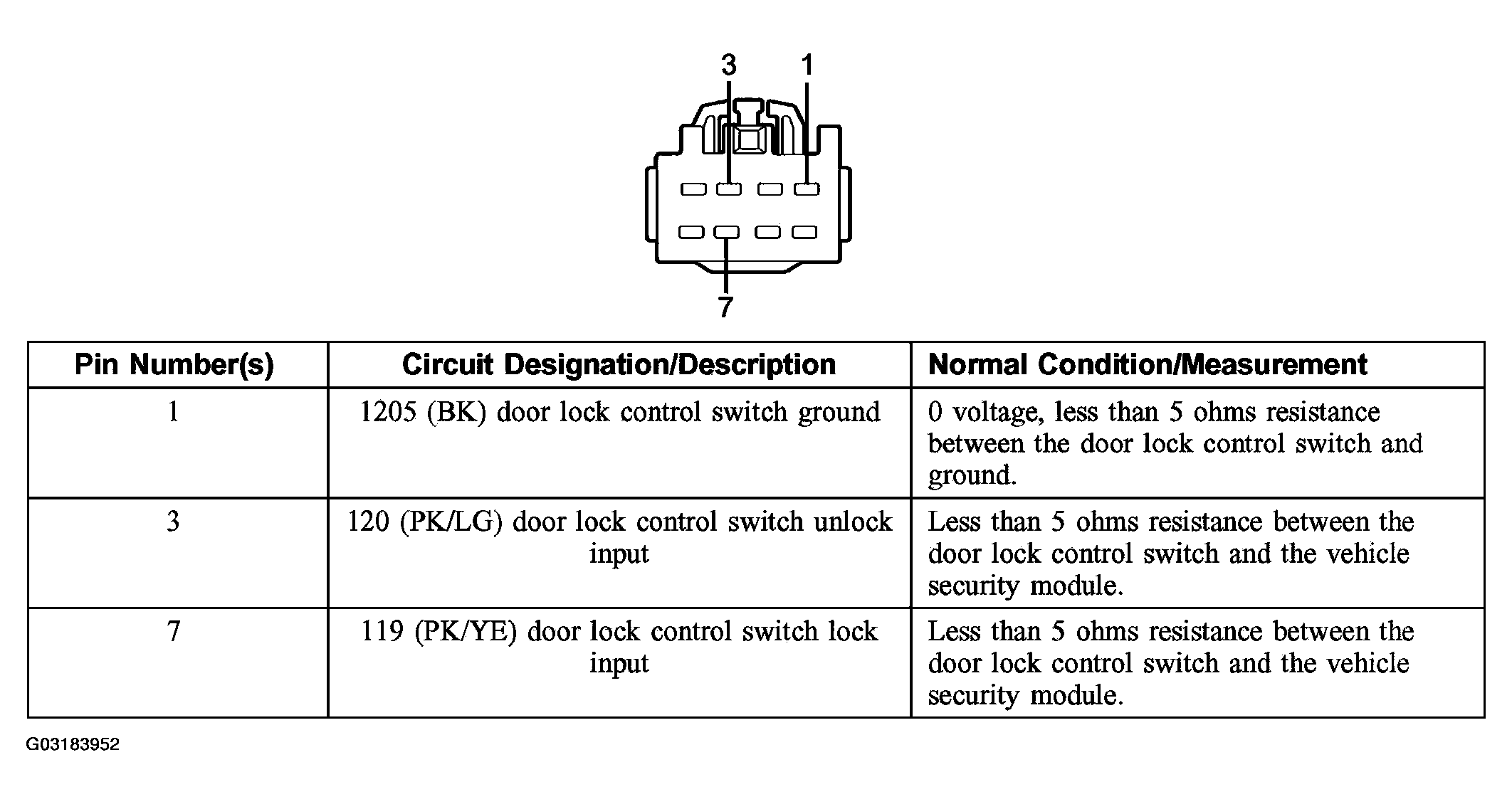

Fig 1: Identifying Connector Terminal (Driver (C505) And Passenger (C609) Door Lock Control Switches)
G03183952Courtesy of FORD MOTOR CO.
