Rear Seat - Quad Buckets, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left-hand seat is shown, right-hand is similar.

Remove the parts in the order listed in the following illustration and table.

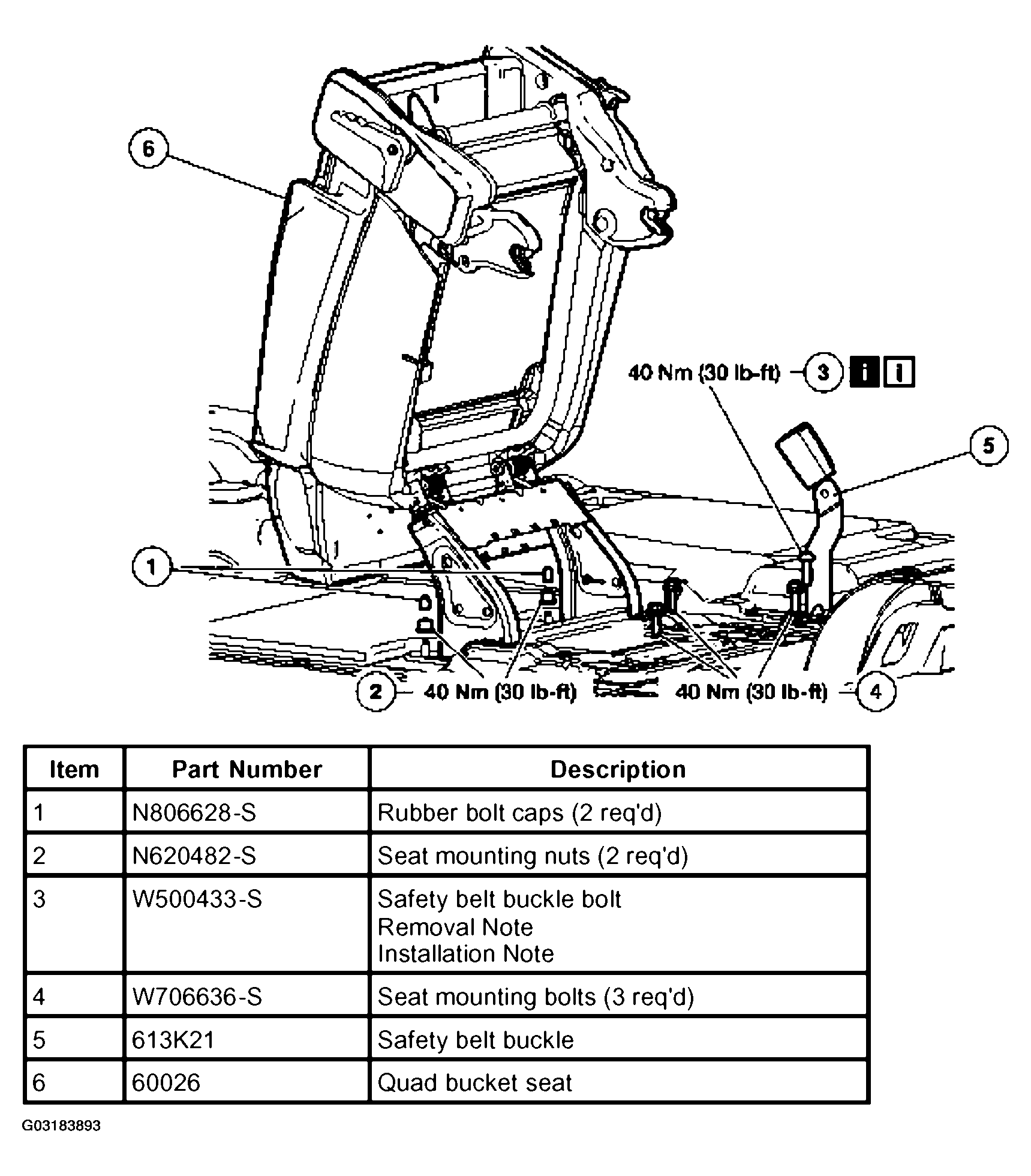

Fig 1: Removing Rear Seat - Quad Buckets, Second Row Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM for additional information.
