Rear Seat - 60/40 Bench, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing the 60 percent seat, the 40 percent seat must be removed first to gain access to the 60 percent seat riser-to-floor nuts and bolts.

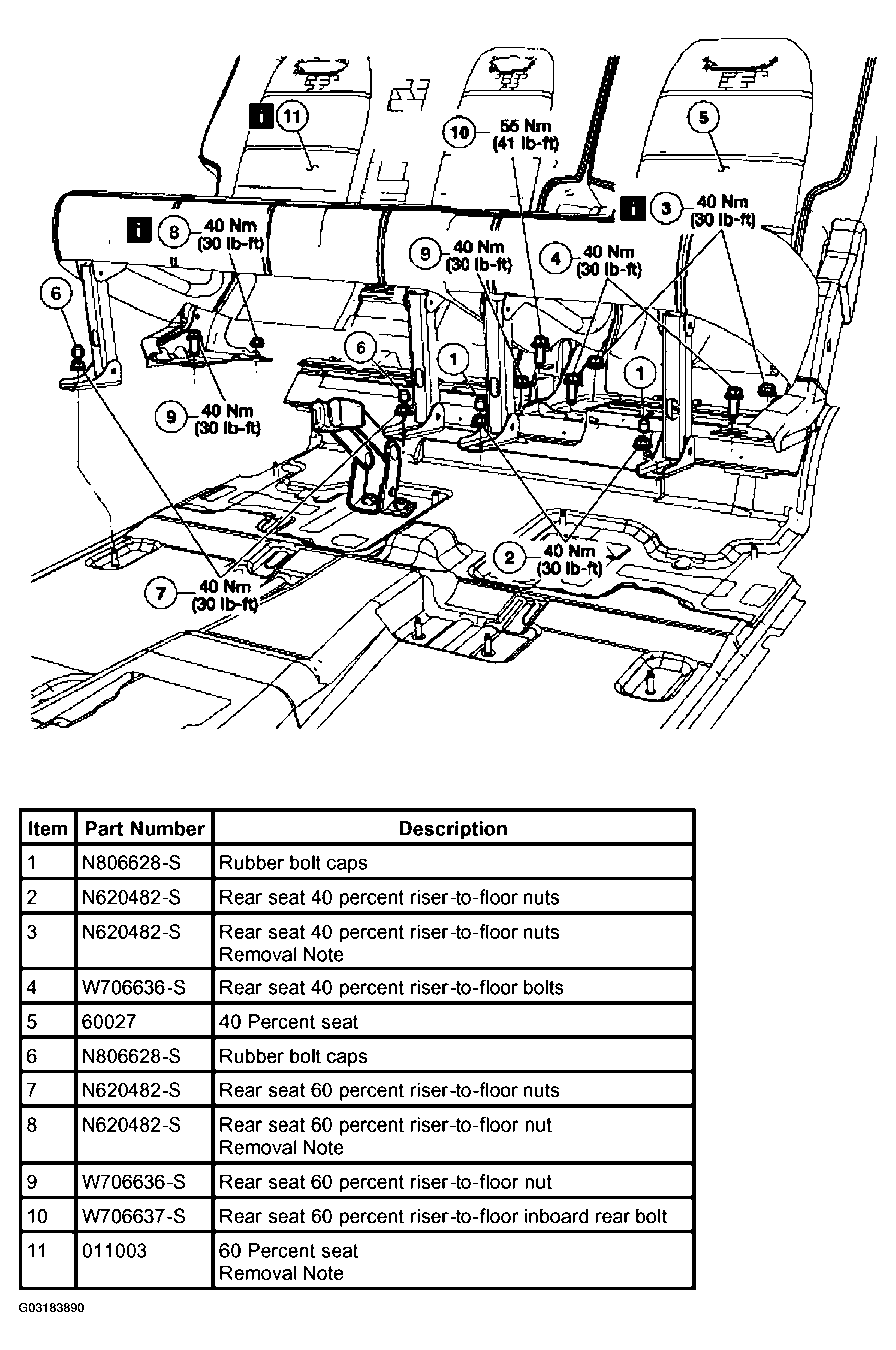

Fig 1: Removing Rear Seat - 60/40 Bench, Second Row Components

Courtesy of FORD MOTOR CO.

Remove the parts in the order listed in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PART REMOVAL STEPS

Part	Steps
40 Percent Seat	1-5
60 Percent Seat	1-11

To install, reverse the removal procedure.
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
