Rear Seat - 40 Percent E-Z Entry, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH seat is shown, RH is similar.

Remove the parts in the order listed in the following illustration and table.

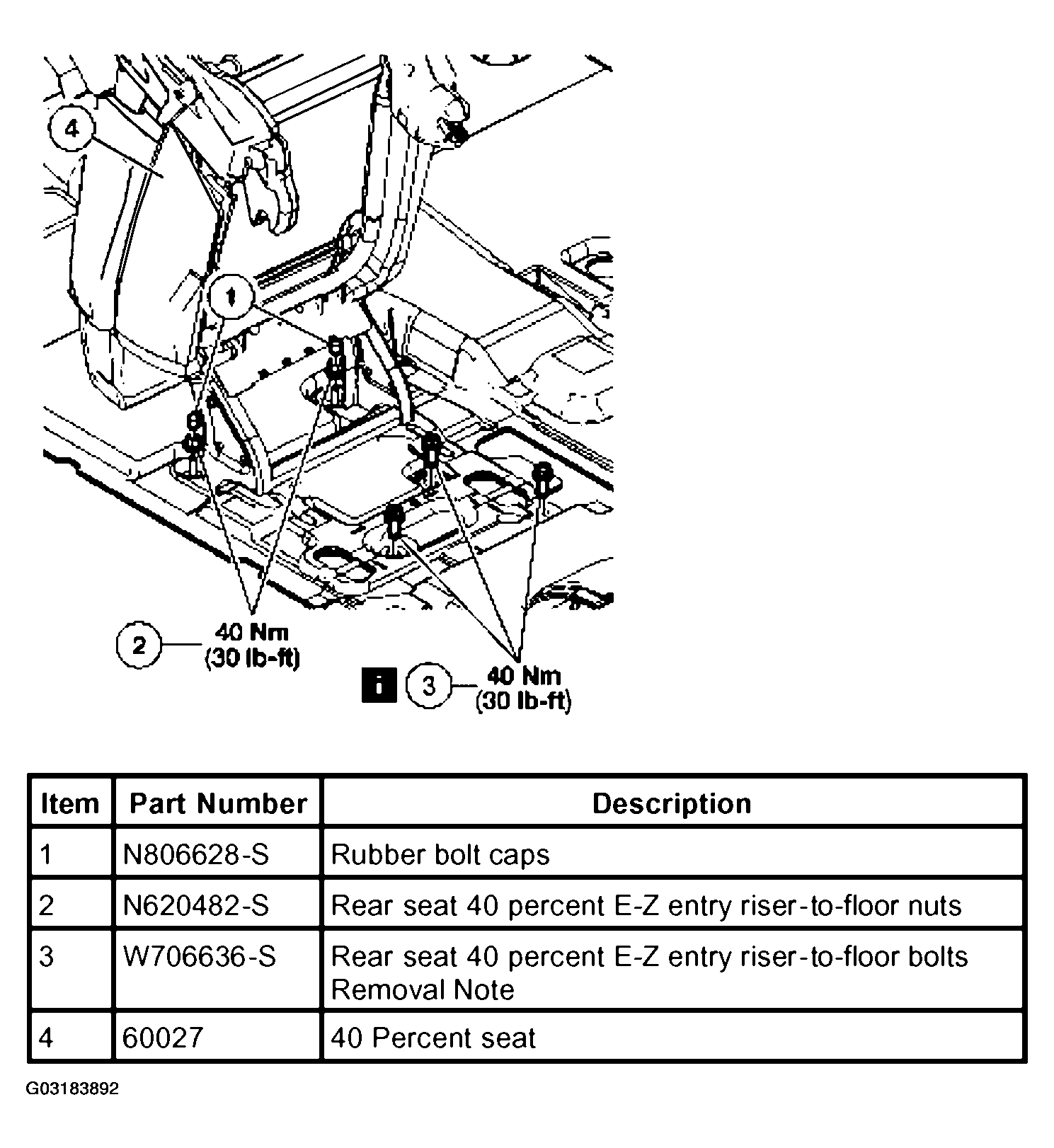

Fig 1: Removing Rear Seat - 40 Percent E-Z Entry, Second Row Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
