Rear Seat - 20 Percent, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order listed in the following illustration and table.

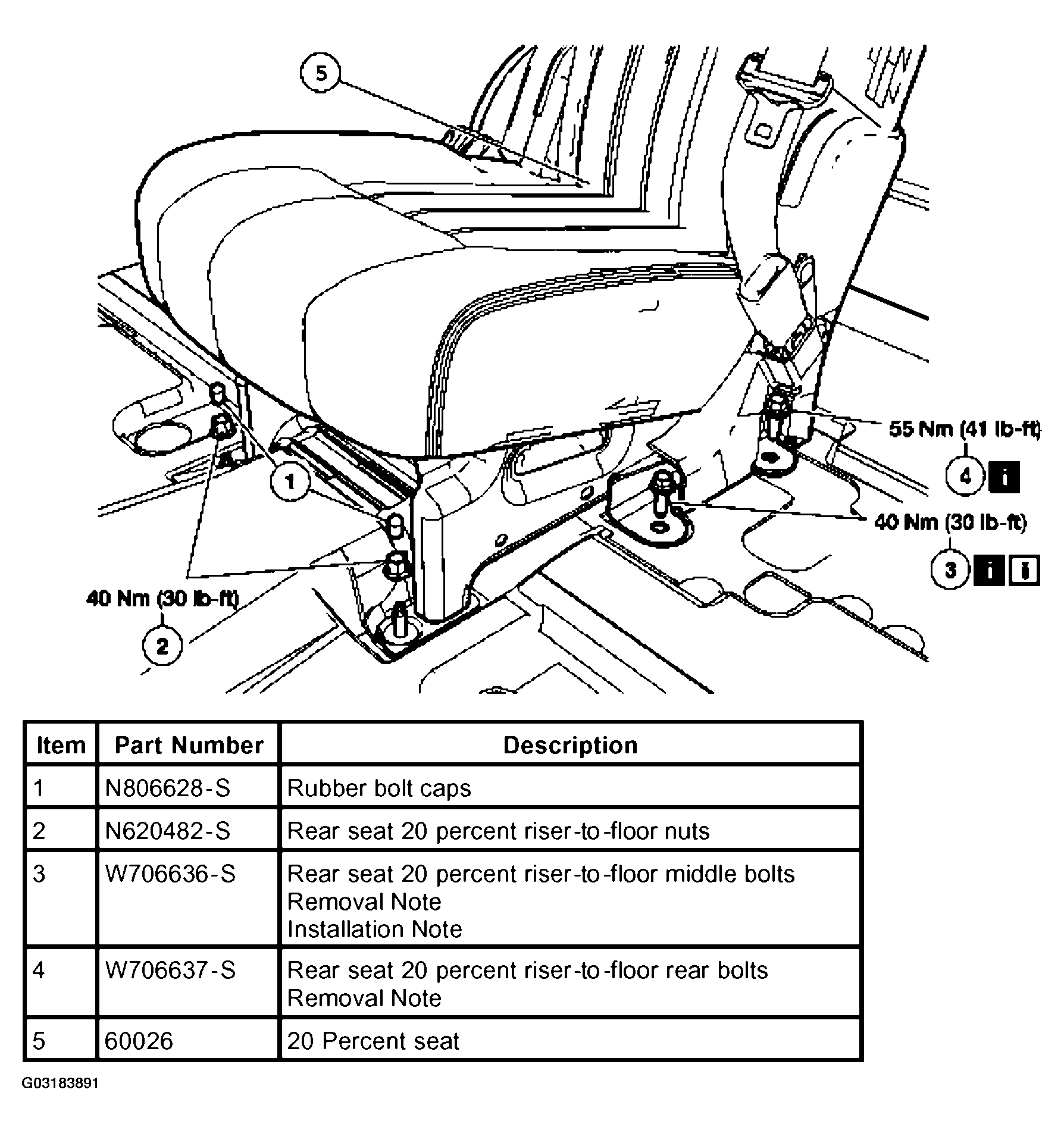

    Fig 1: Removing Rear Seat - 20 Percent, Second Row Components
    G03183891Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
  3. Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
