Rear Seat Cushion - Quad Buckets, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left-hand seat is shown, right-hand is similar.

Remove the second row, quad bucket seat. For additional information, refer to REAR SEAT - QUAD BUCKETS, SECOND ROW .

Disassemble the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PART REMOVAL STEPS

Part	Steps
Quad bucket seat backrest	1-2

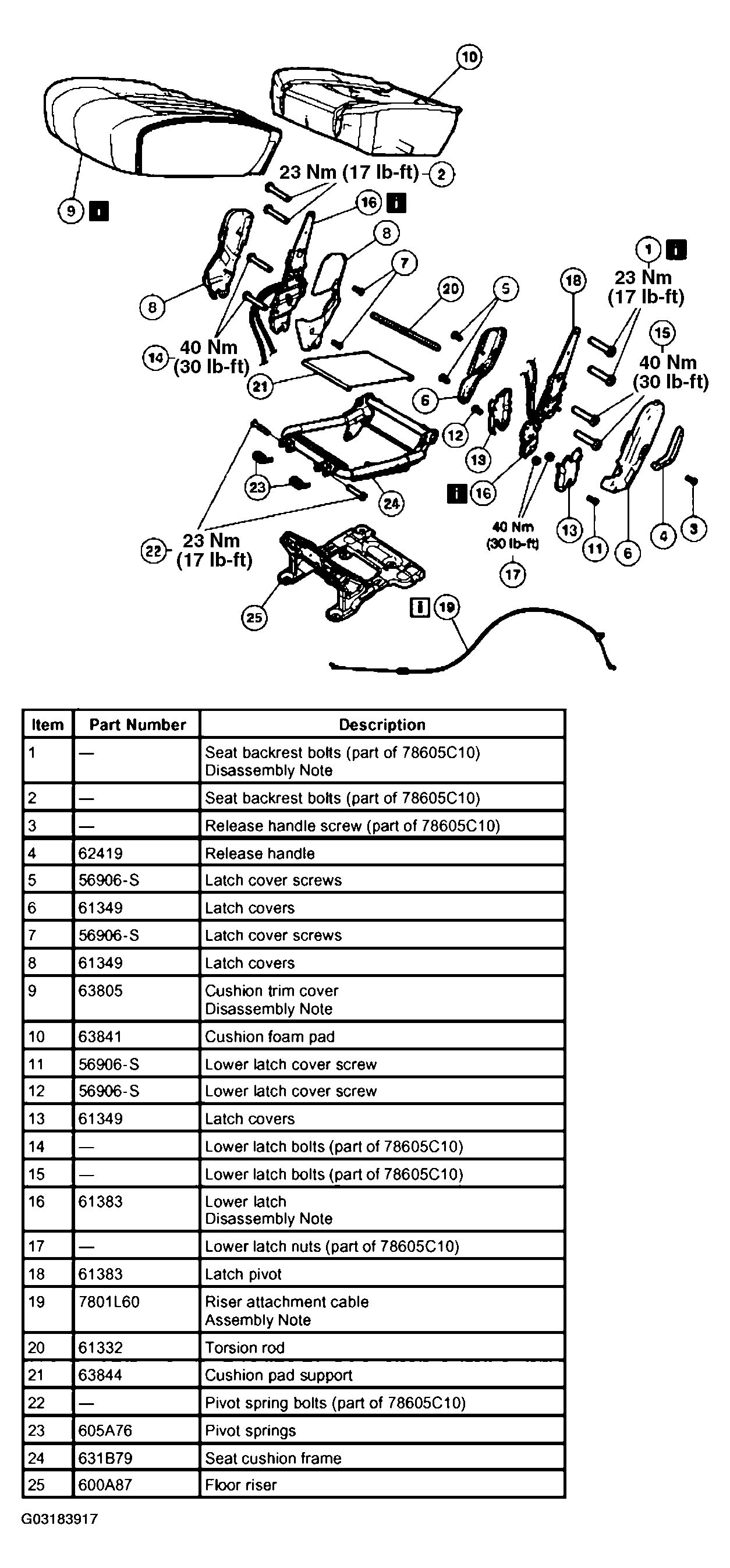

Fig 1: Removing Rear Seat Cushion - Quad Buckets, Second Row Components

Courtesy of FORD MOTOR CO.

To assemble, reverse the disassembly procedure.
