Rear Seat Cushion - 40 Percent of 60/40 Bench, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the second row, 40 percent seat. For additional information, REFER to REAR SEAT - 60/40 BENCH, SECOND ROW .
  2. Disassemble the parts in the order listed in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PART REMOVAL STEPS

    Part Steps
    40 percent seat backrest 1-6

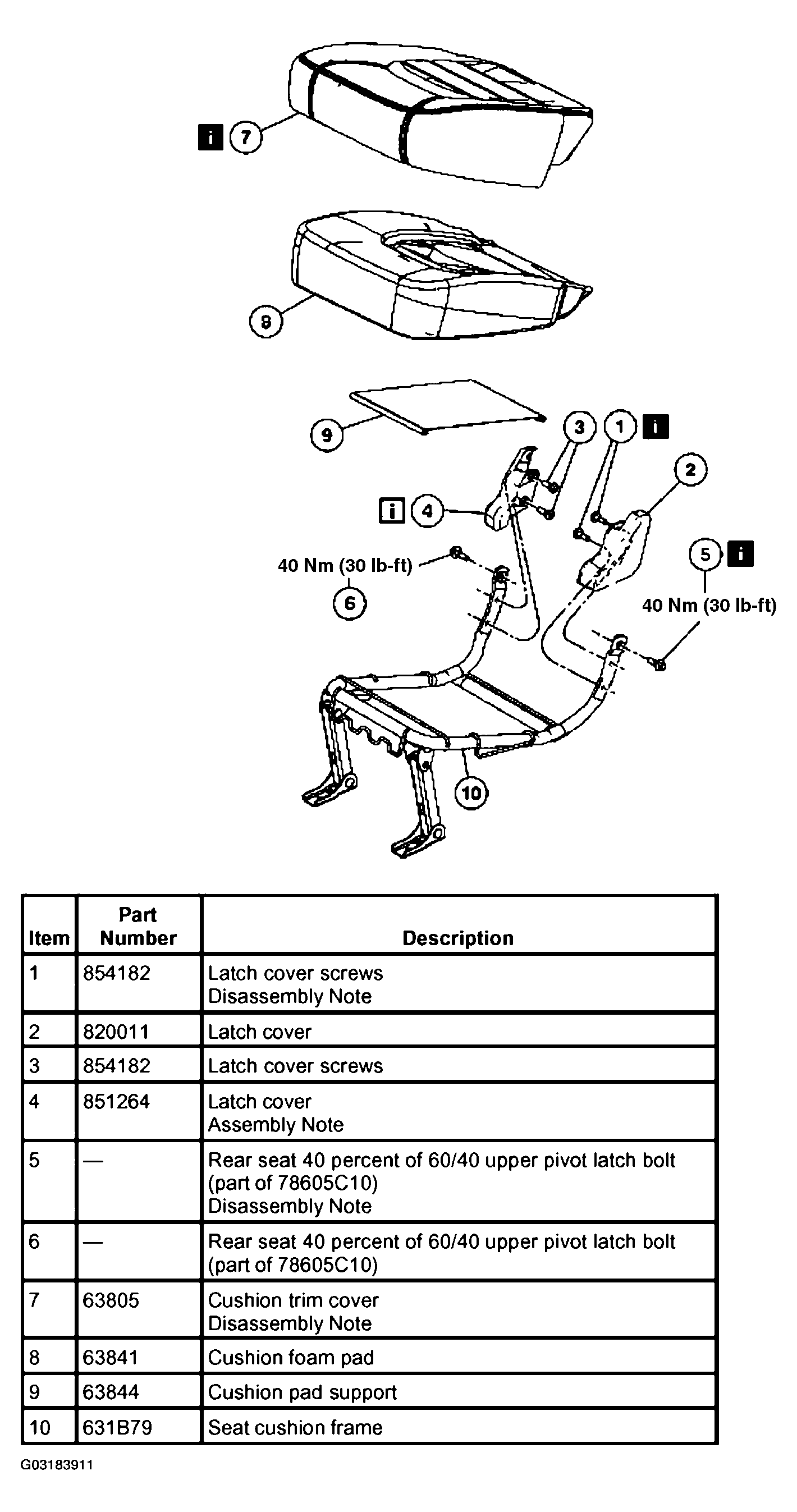

    Fig 1: Removing Rear Seat Cushion - 40 Percent Of 60/40 Bench, Second Row Components
    G03183911Courtesy of FORD MOTOR CO.
  3. To assemble, reverse the disassembly procedure.
