Rear Seat Cushion - 20 Percent, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Mountaineer seat is shown, Explorer is similar.

Remove the second row, 20 percent seat. For additional information, refer to REAR SEAT - 20 PERCENT, SECOND ROW .

Disassemble the parts in the order listed in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PART REMOVAL STEPS

Part	Steps
20 percent seat backrest	1-8
LH safety belt buckle	1-2, 5-6
RH safety belt buckles	3-4, 21-22

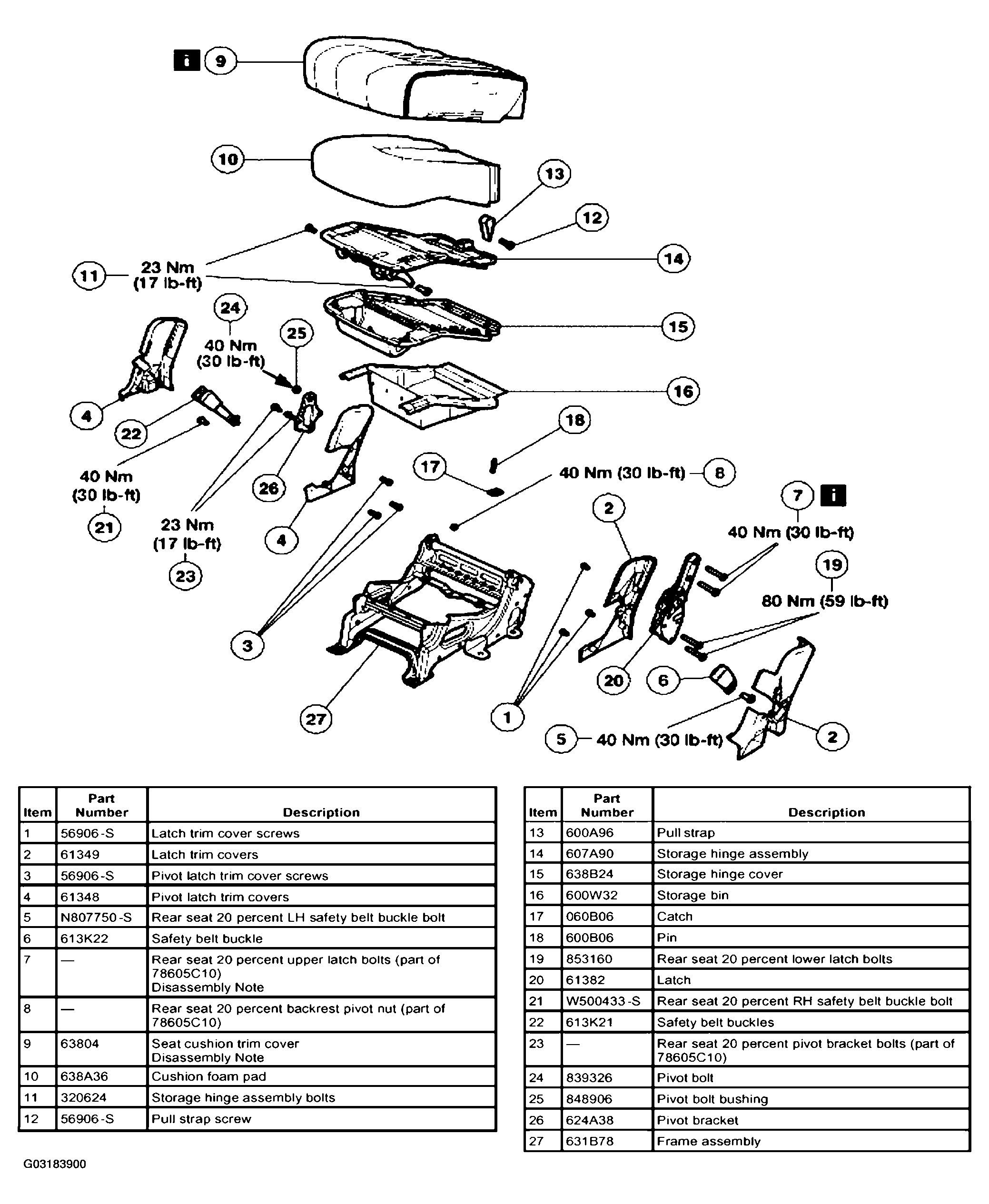

Fig 1: Removing Rear Seat Cushion - 20 Percent, Second Row Components

Courtesy of FORD MOTOR CO.

To assemble, reverse the disassembly procedure.
