Item 2: Load Floor Rods Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the load floor from the seat backrest.
  1. Remove the screws.
  2. Rotate the rod 90 degrees and pull it out.

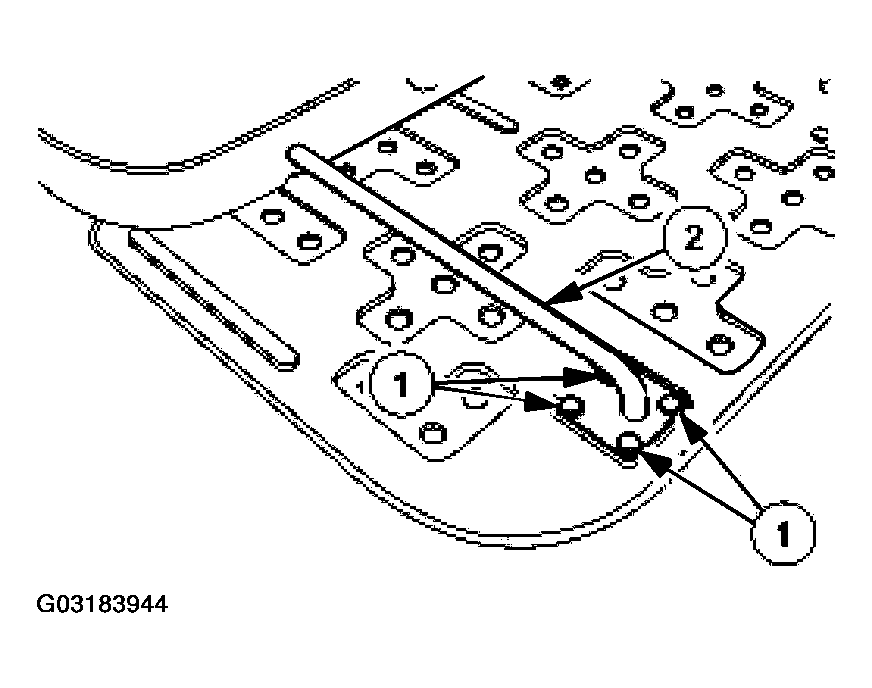

Fig 1: Removing Load Floor From Seat Backrest
G03183944Courtesy of FORD MOTOR CO.
