Rear Seat Backrest - Quad Buckets, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the second row, quad bucket seat. For additional information, refer to REAR SEAT - QUAD BUCKETS, SECOND ROW .
  2. Remove the second row, quad bucket seat backrest. For additional information, refer to REAR SEAT CUSHION - QUAD BUCKETS, SECOND ROW .
  3. Disassemble the parts in the order indicated in the following illustration and table.

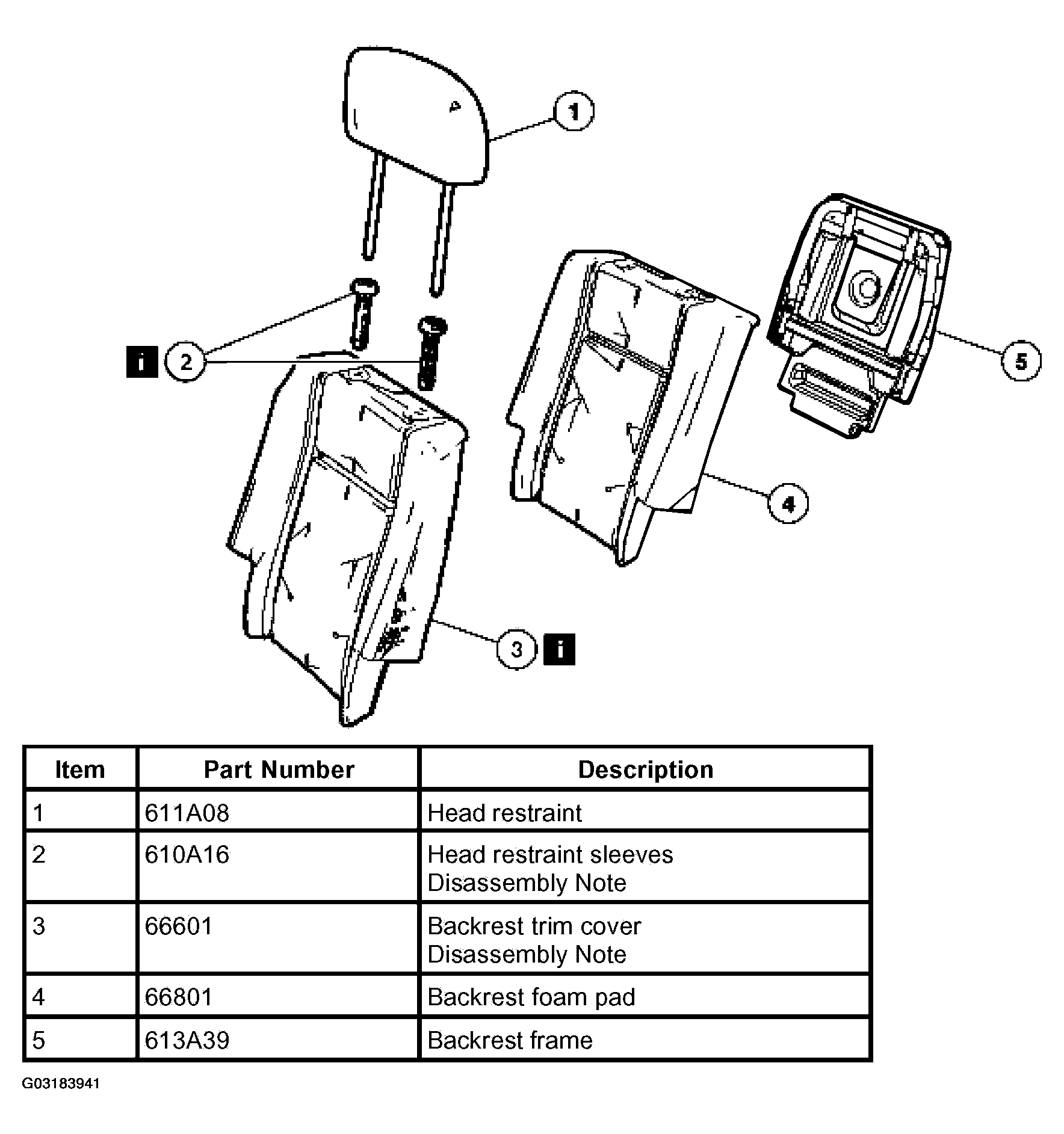

    Fig 1: Removing Rear Seat Backrest - Quad Buckets, Second Row Components
    G03183941Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
