item 21: Latch Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. The cable is to be routed in front of the spring.

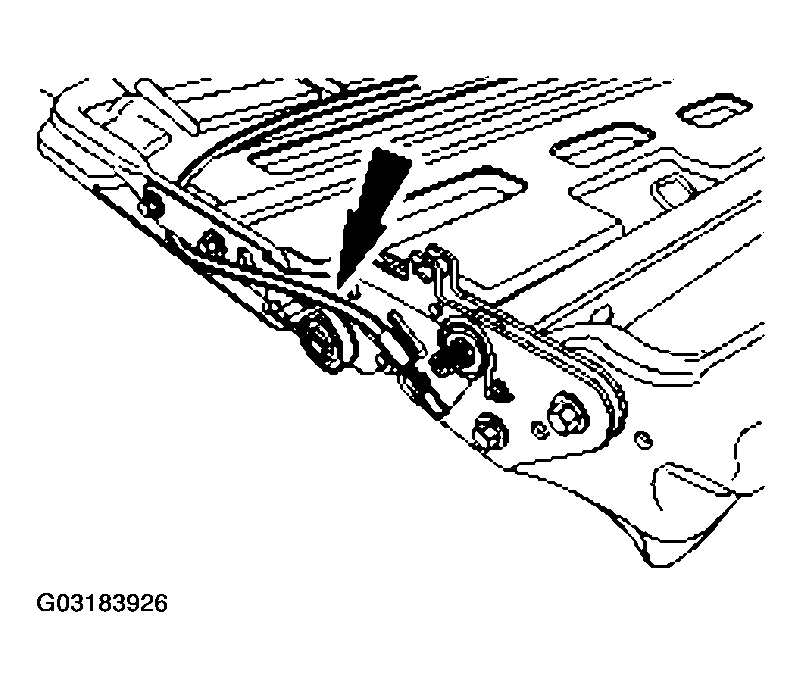

    Fig 1: Identifying Cable Routed In Front Of Spring
    G03183926Courtesy of FORD MOTOR CO.
    2. CAUTION: The cable is to move freely after assembly.

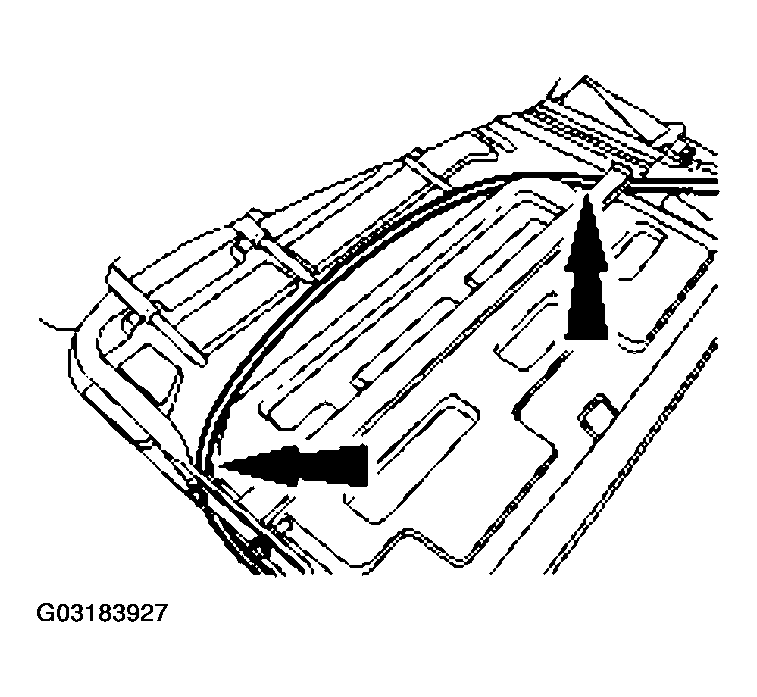

    Fig 2: Identifying Cable
    G03183927Courtesy of FORD MOTOR CO.
  2. The cable is to pass between the backrest frame and the backrest support at the two points shown.
