Rear Seat Backrest - 40 Percent E-Z Entry, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the second row, 40 percent E-Z entry seat. For additional information, refer to REAR SEAT - 40 PERCENT E-Z ENTRY, SECOND ROW .
  2. Remove the second row, 40 percent E-Z entry seat backrest. For additional information, refer to REAR SEAT CUSHION - 40 PERCENT E-Z ENTRY, SECOND ROW .
  3. Disassemble the parts in the order listed in the following illustration and table.

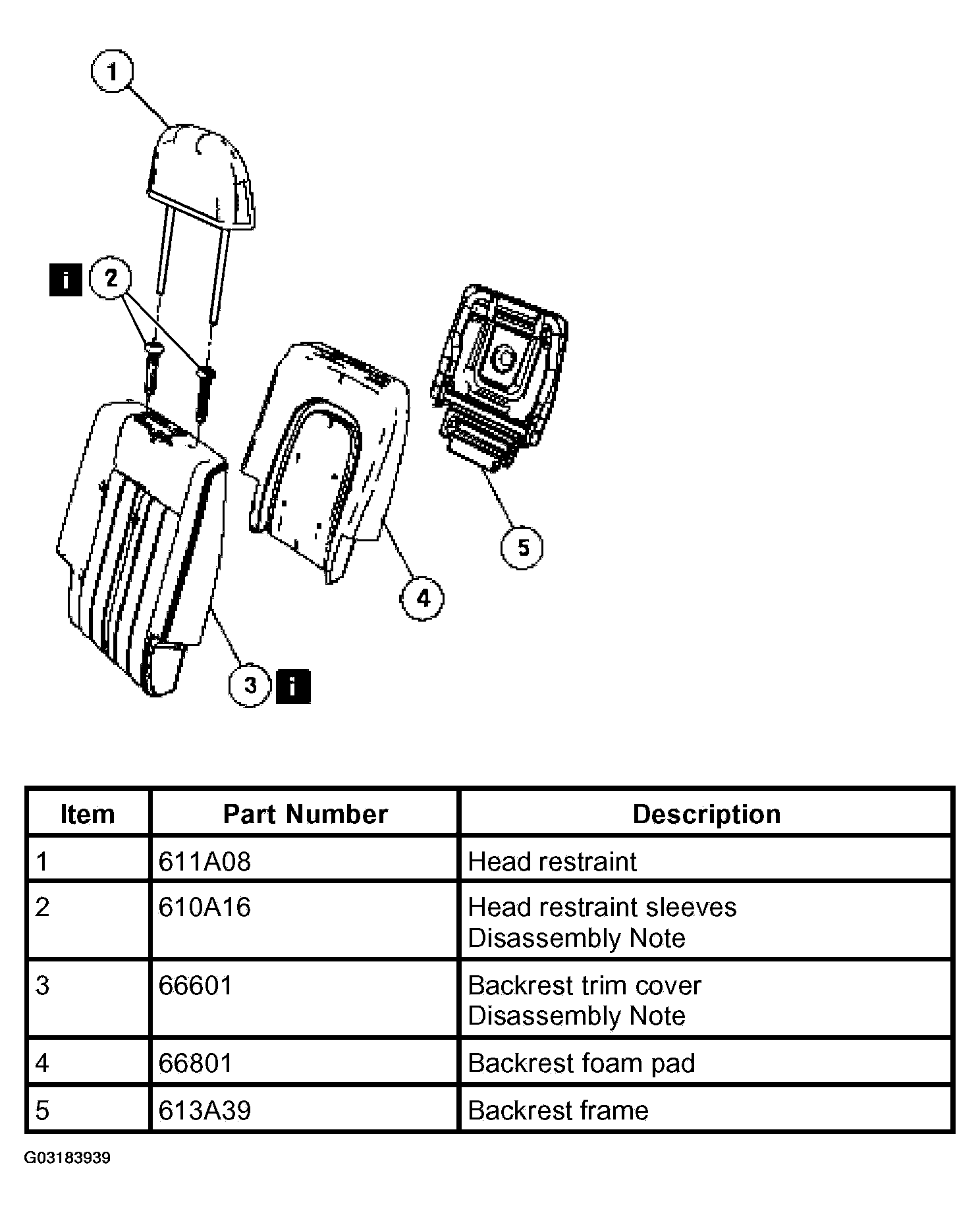

    Fig 1: Removing Rear Seat Backrest - 40 Percent E-Z Entry, Second Row Components
    G03183939Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
