item 11: Backrest Frame Support Panel Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the release handle cable between the backrest frame support panel and the backrest frame before putting the two together.

    Install the cable into the holder.

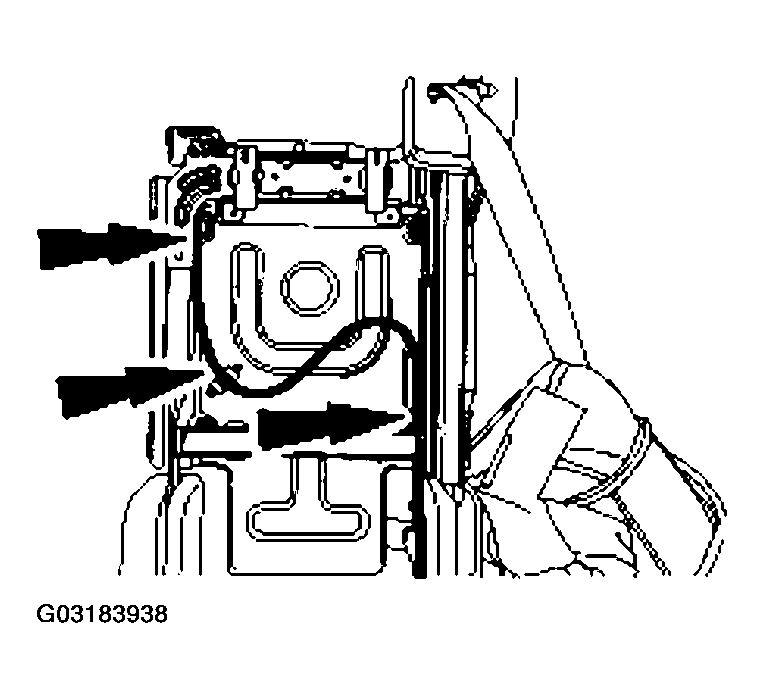

    Fig 1: Installing Cable Into Holder
    G03183938Courtesy of FORD MOTOR CO.
