Driver and Passenger Heated Seat Backrest Element C365a/C335a

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

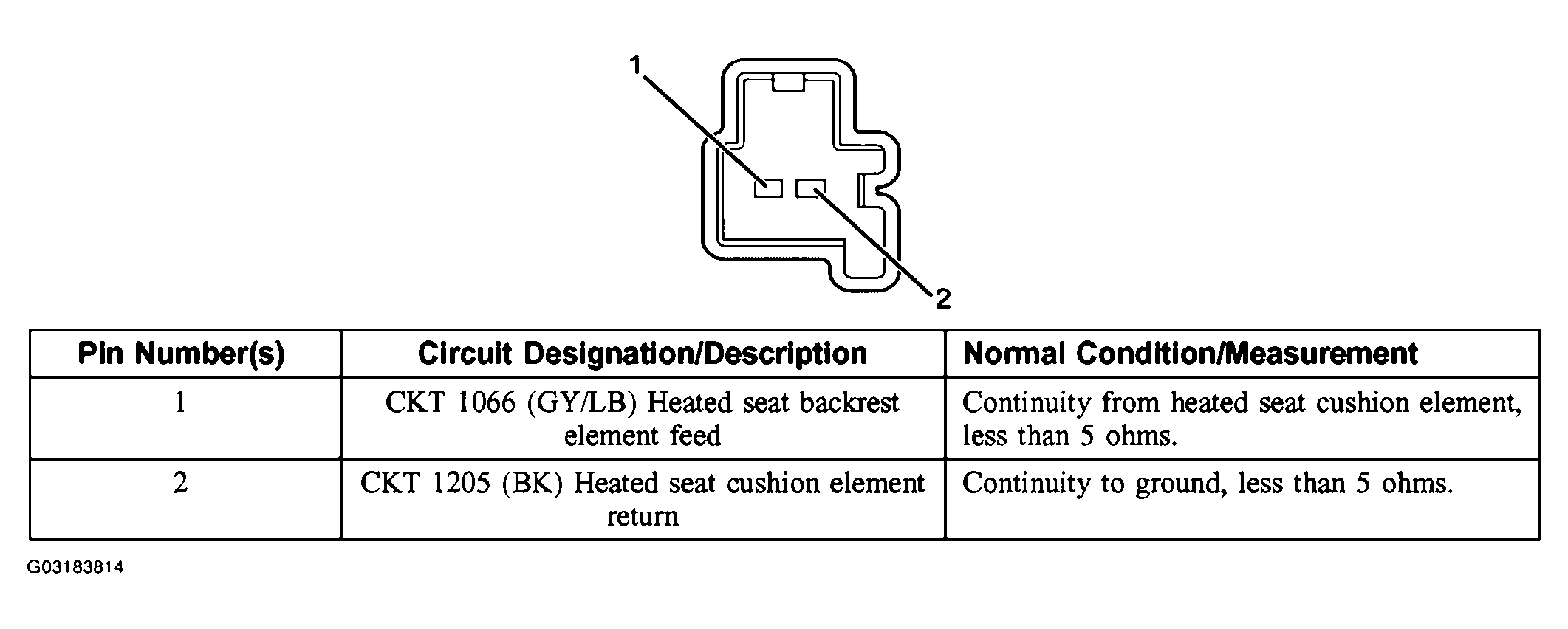

Fig 1: Identifying Driver And Passenger Heated Seat Backrest Element C365A/C335A Connector Pins
G03183814Courtesy of FORD MOTOR CO.
