Side Turn Signal Lamp

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar.

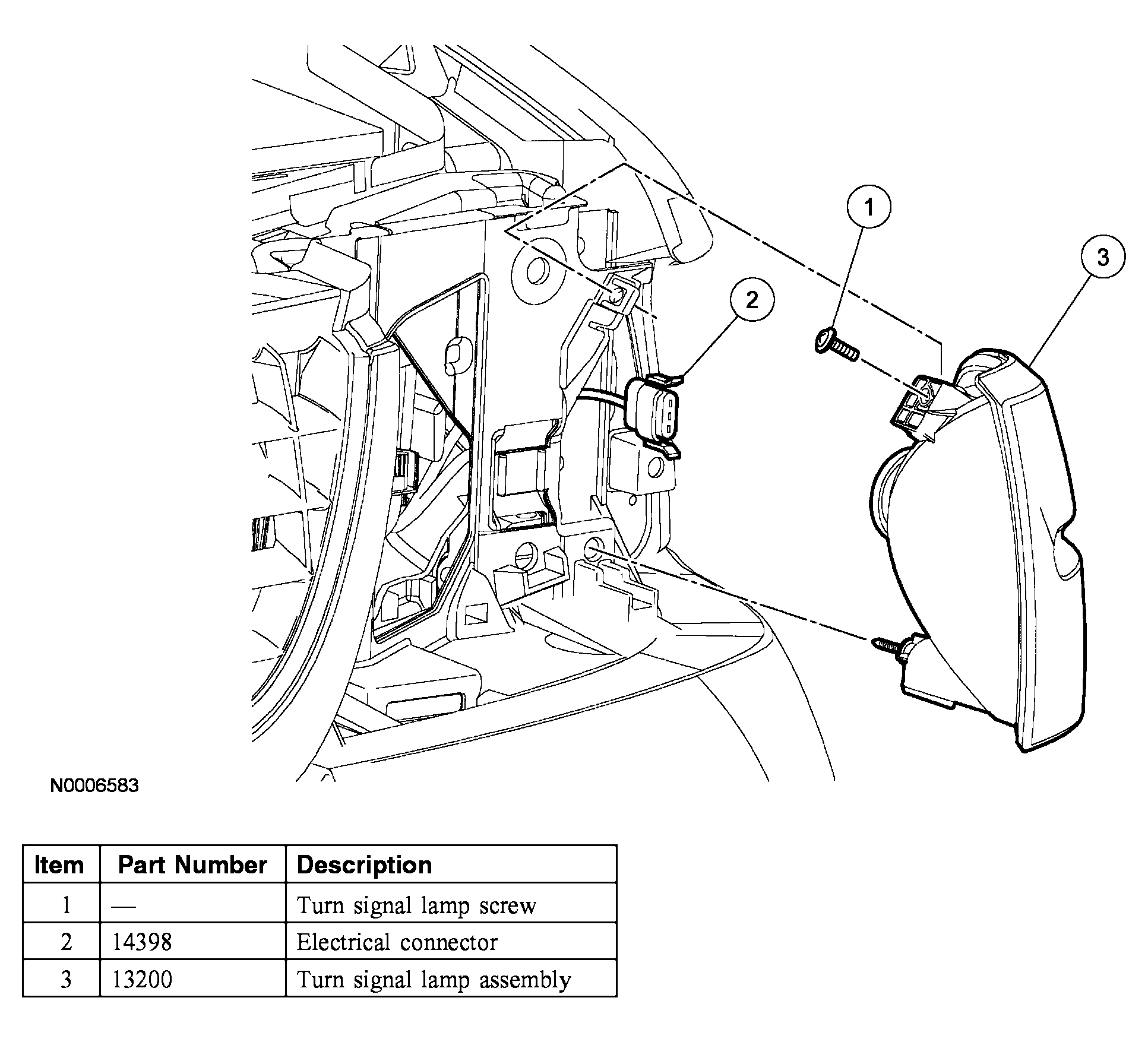

Fig 1: Removing Side Turn Signal Lamp

Courtesy of FORD MOTOR CO.

Remove the headlamp. For additional information, refer to HEADLAMP ASSEMBLY .
Remove the turn signal lamp screw.
Disconnect the electrical connector.
Remove the turn signal lamp assembly.
To install, reverse the removal procedure.
