Headlamp Switch

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster finish panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the headlamp switch from the instrument cluster finish panel.

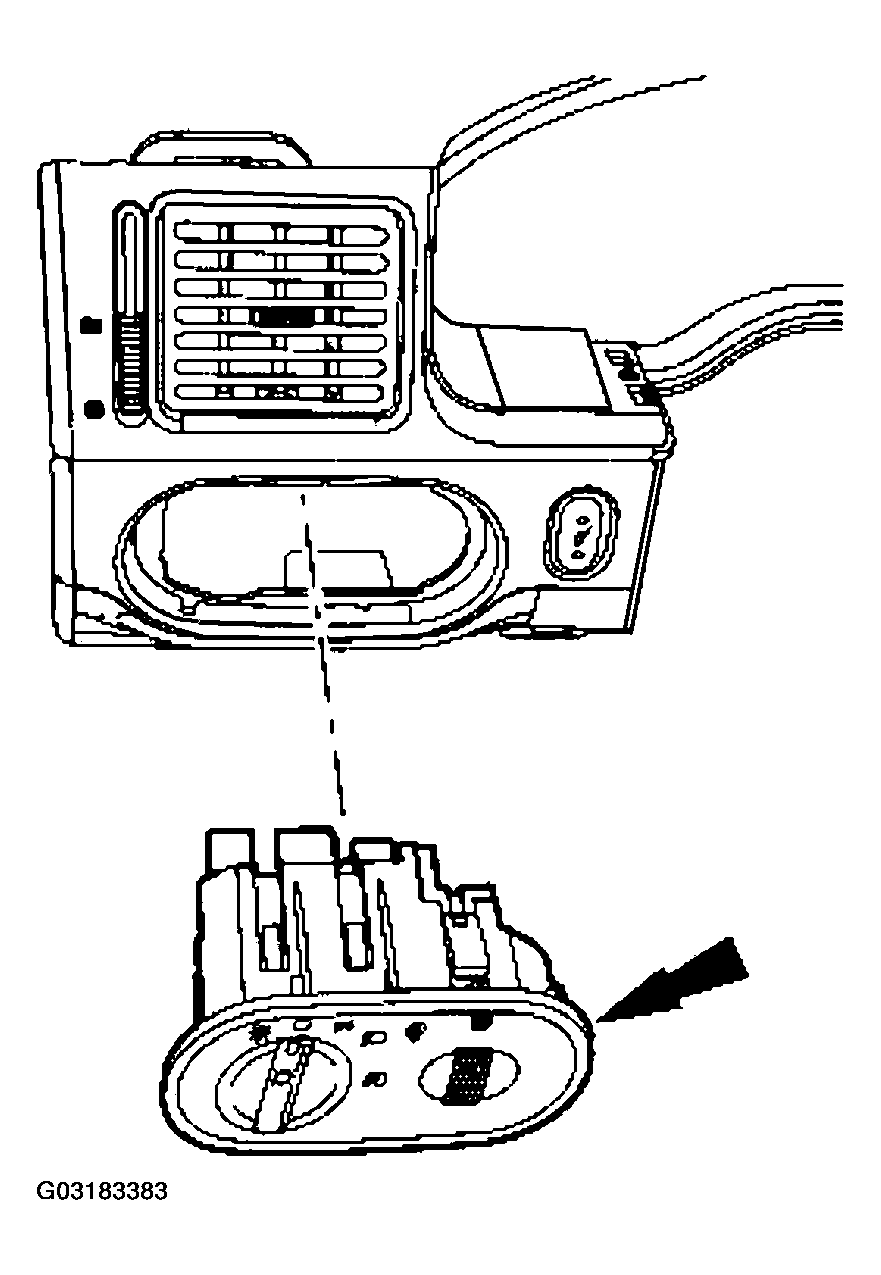

    Fig 1: Removing Headlamp Switch From Instrument Cluster Finish Panel
    G03183383Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
