Fog Lamp
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Make sure the headlamp switch and ignition switch are in the OFF position. NOTE: LH shown, RH similar.
- Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .

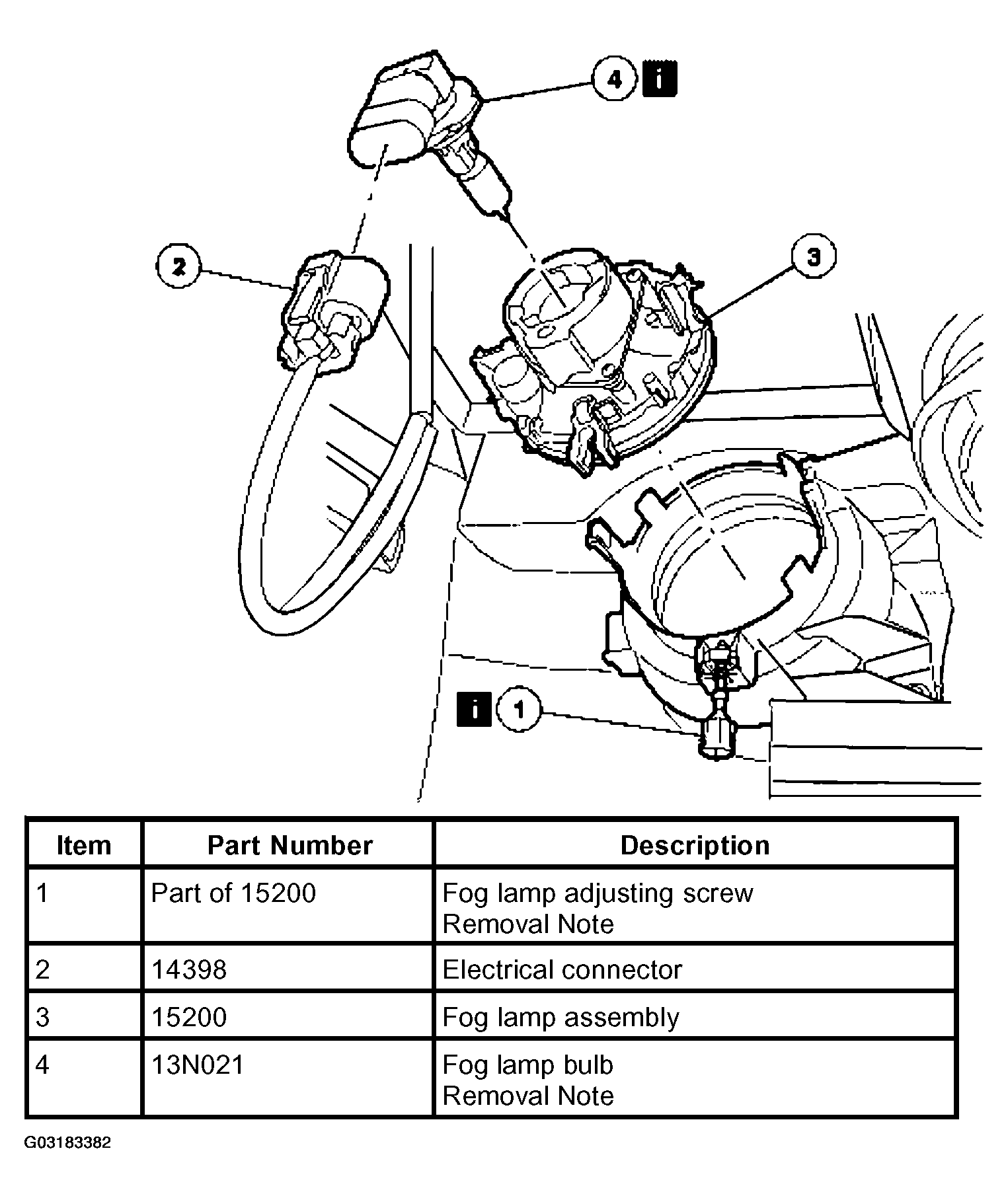

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
Item 1: Fog Lamp Adjusting Screw Removal Note
- The fog lamp adjusting screw pivots down out of the way to remove the fog lamp assembly.
Item 4: Fog Lamp Bulb Removal Note
WARNING:
The halogen bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.
- The fog lamp bulb should not be removed from the fog lamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect fog lamp performance. Contaminants may enter the fog lamp where they can settle on the lens and reflector. Never turn on the fog lamps with the bulb removed.
