Mountaineer: LH Repeater Lamp C1108, RH Repeater Lamp C1109

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

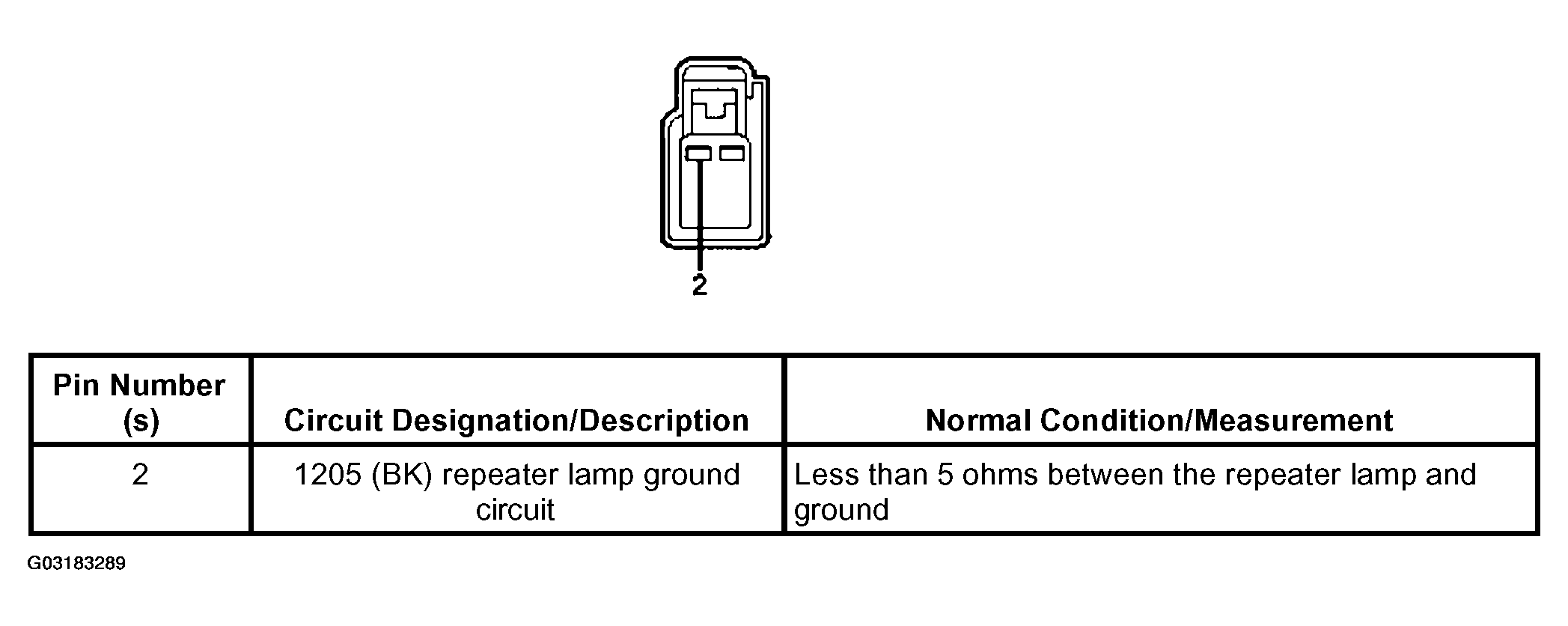

Fig 1: Identifying LH Repeater Lamp C1108, RH Repeater Lamp C1109 Connector Terminals (Mountaineer)
G03183289Courtesy of FORD MOTOR CO.
