Mountaineer: LH Parking/Turn lamp C1115, RH Park/Turn lamp C1116

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

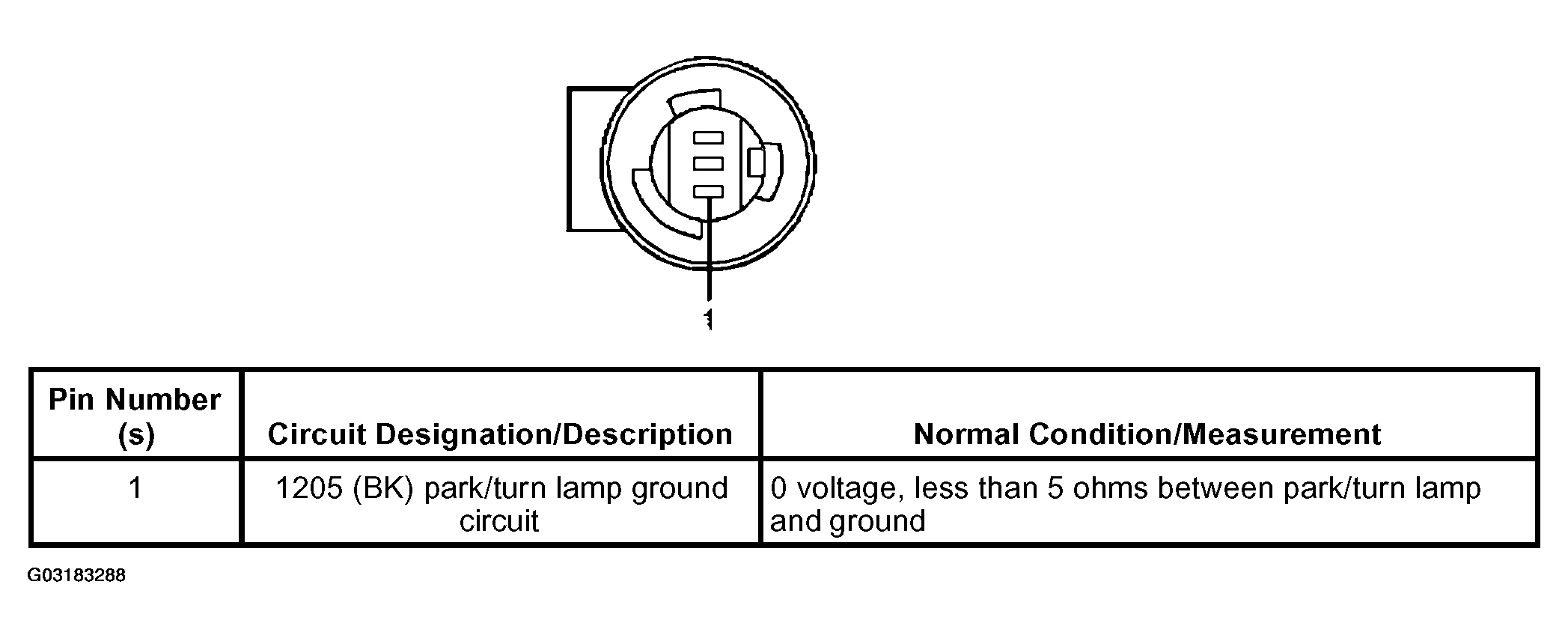

Fig 1: Identifying LH Parking/Turn Lamp C1115, RH Park/Turn Lamp C1116 Connector Terminals (Mountaineer)
G03183288Courtesy of FORD MOTOR CO.
