Trailer Tow RH Turn Relay C1187, Trailer Tow LH Turn Relay C1188, Trailer Tow Reversing Lamp Relay C4023

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

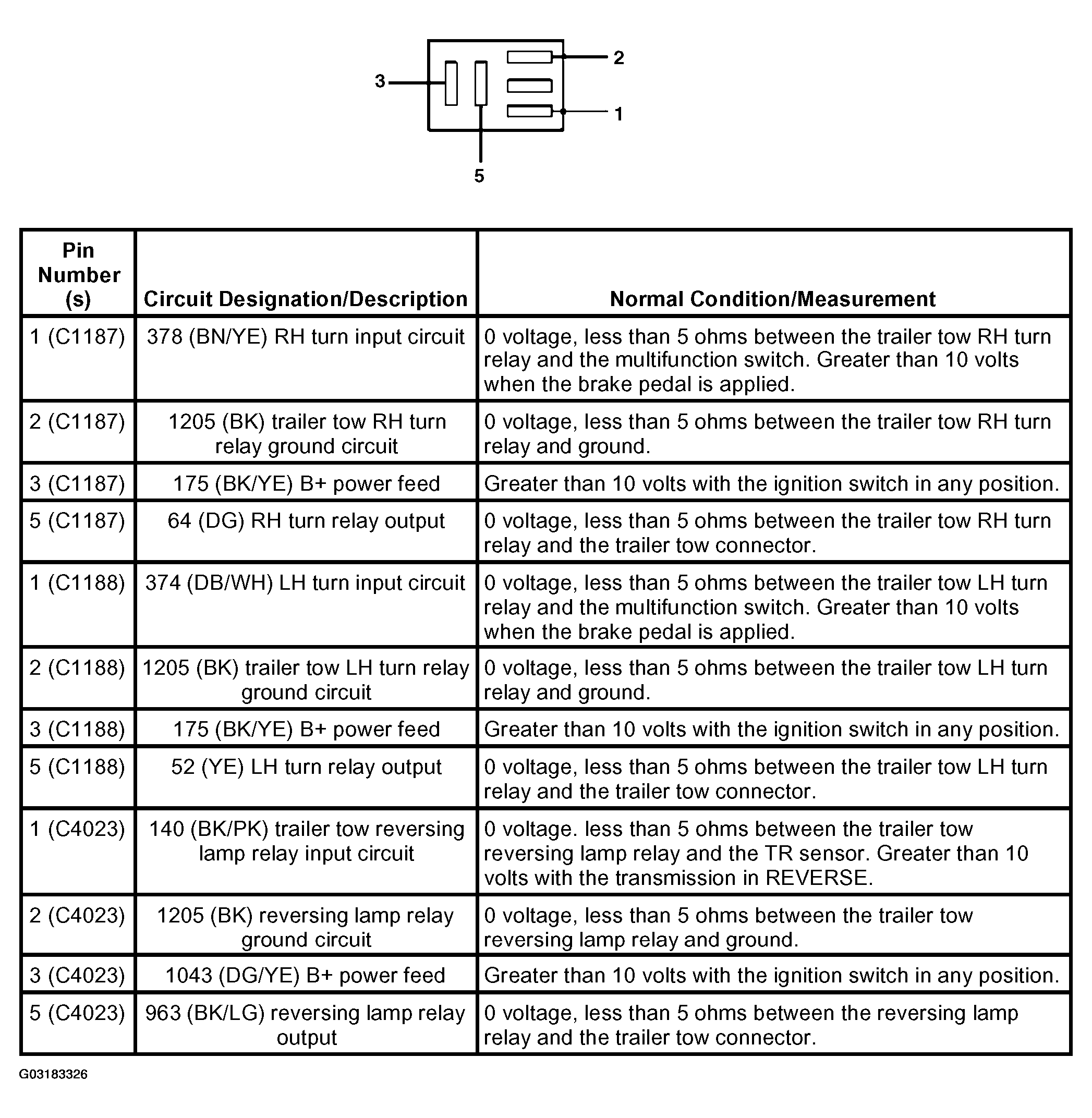

Fig 1: Identifying Trailer Tow RH Turn Relay C1187, Trailer Tow LH Turn Relay C1188, Trailer Tow Reversing Lamp Relay C4023 Connector Terminals
G03183326Courtesy of FORD MOTOR CO.
