LH Reversing Lamp C451, RH Reversing Lamp C461

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

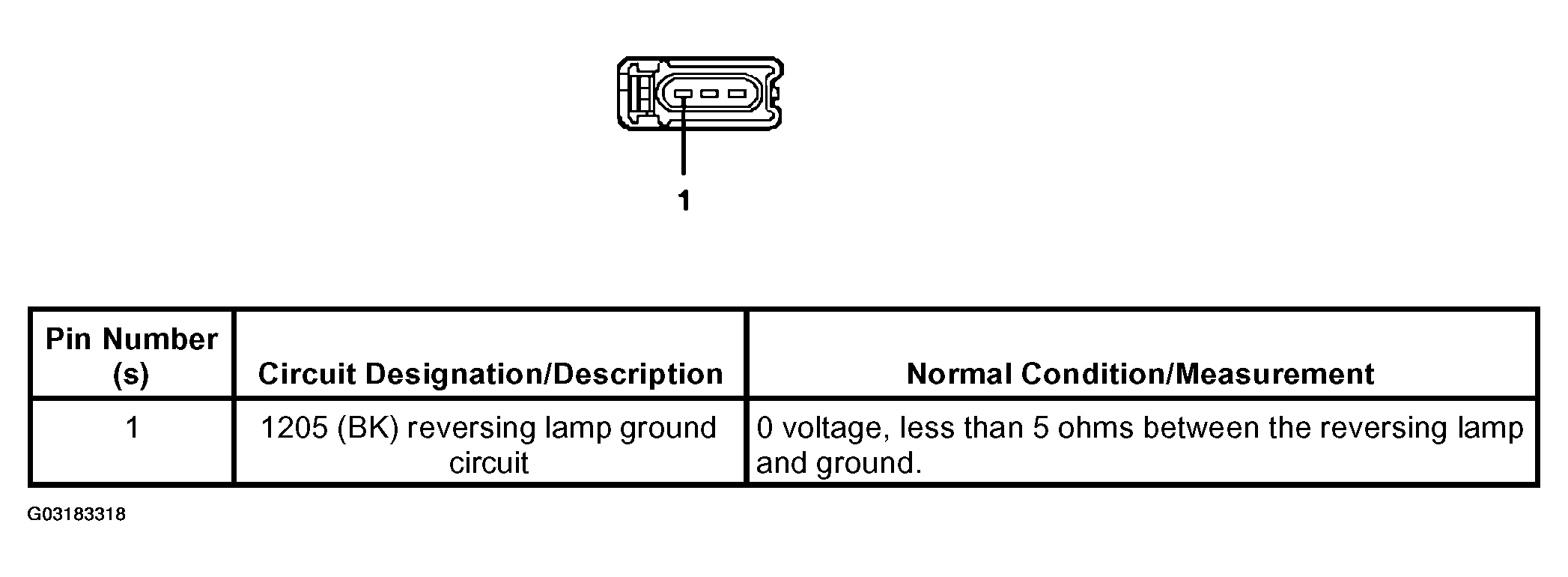

Fig 1: Identifying LH Reversing Lamp C451, RH Reversing Lamp C461 Connector Terminals
G03183318Courtesy of FORD MOTOR CO.
