Door Speaker

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The removal and installation procedures apply to all original equipment door-mounted speakers.

Remove the door trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

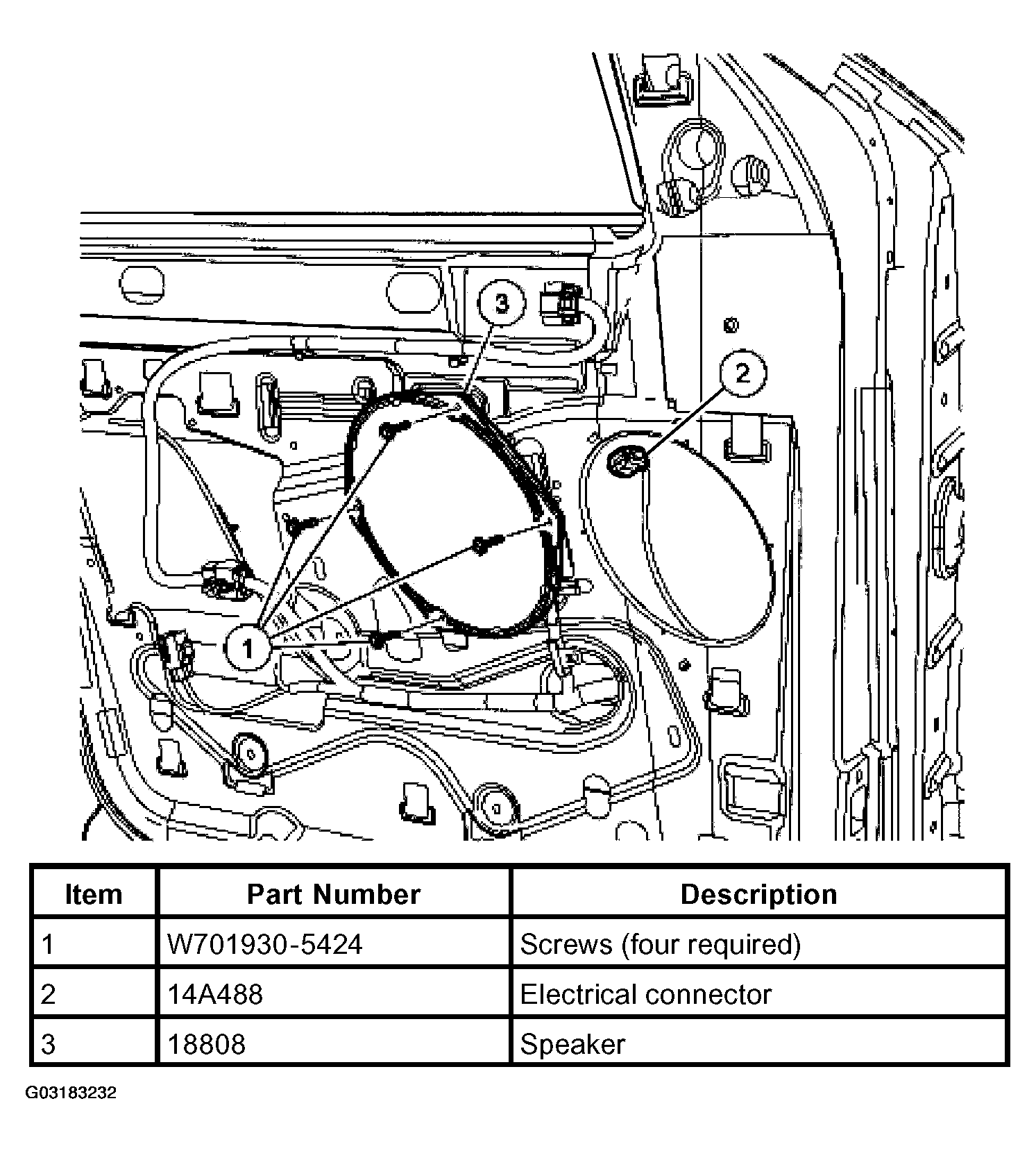

Fig 1: Identifying Removal Sequence Of Door Speaker
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
