Battery - 4.6L (2V): Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When lifting a plastic-cased battery, excessive pressure on the end walls could cause acid to spew through the vent caps resulting in personal injury, damage to the vehicle or to the battery. Lift with a battery carrier or with your hands on opposite corners.

Disconnect the battery. For additional information, refer to BATTERY DISCONNECT .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

BATTERY - 4.6L (2V) REMOVAL STEPS

Part	Steps
Battery cables	1-27
Battery	28-30
Battery tray	28-32

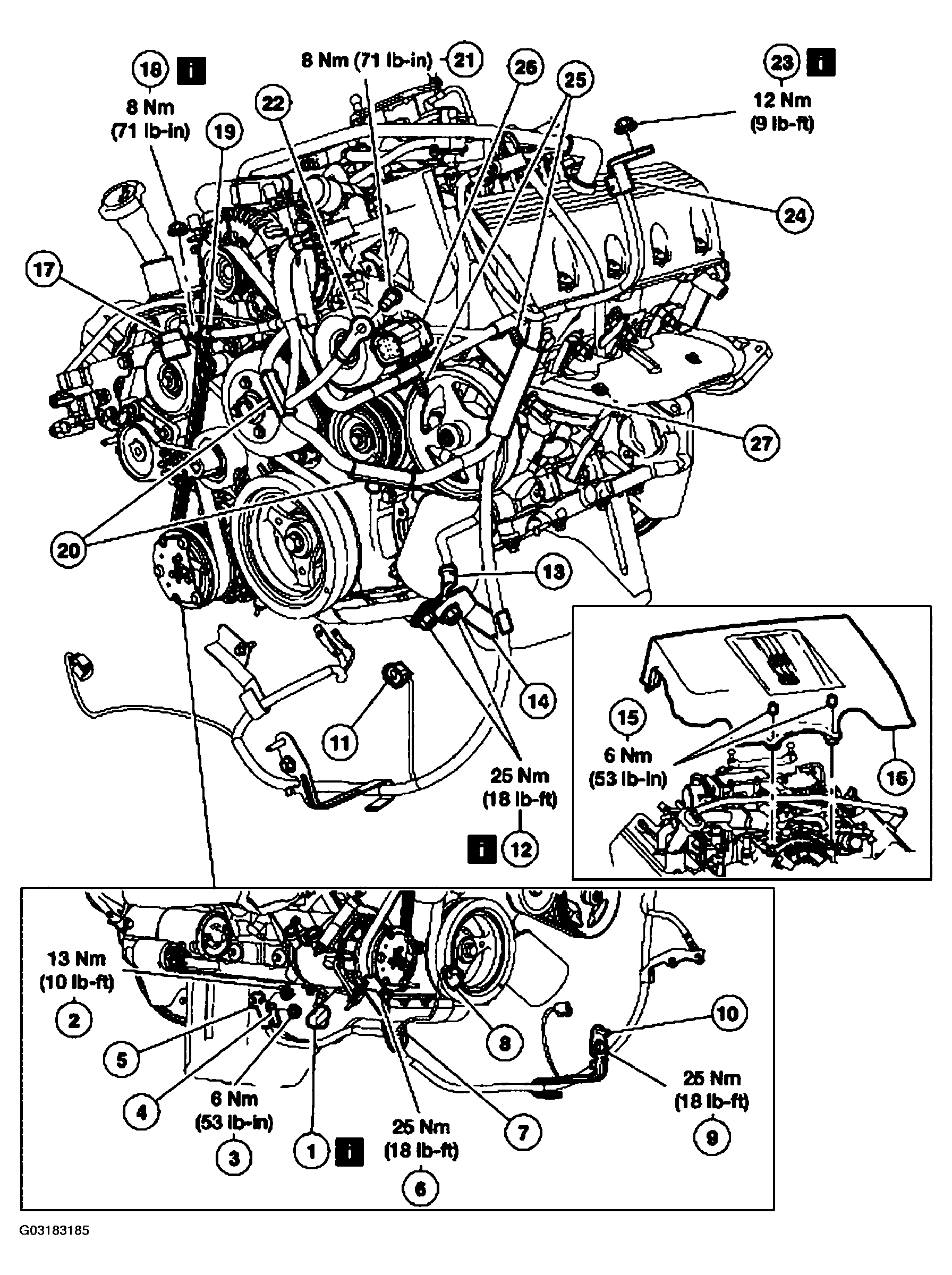

Fig 1: Identifying Removal Sequence Of Battery - 4.6L (2V) (1 Of 3)

Courtesy of FORD MOTOR CO.

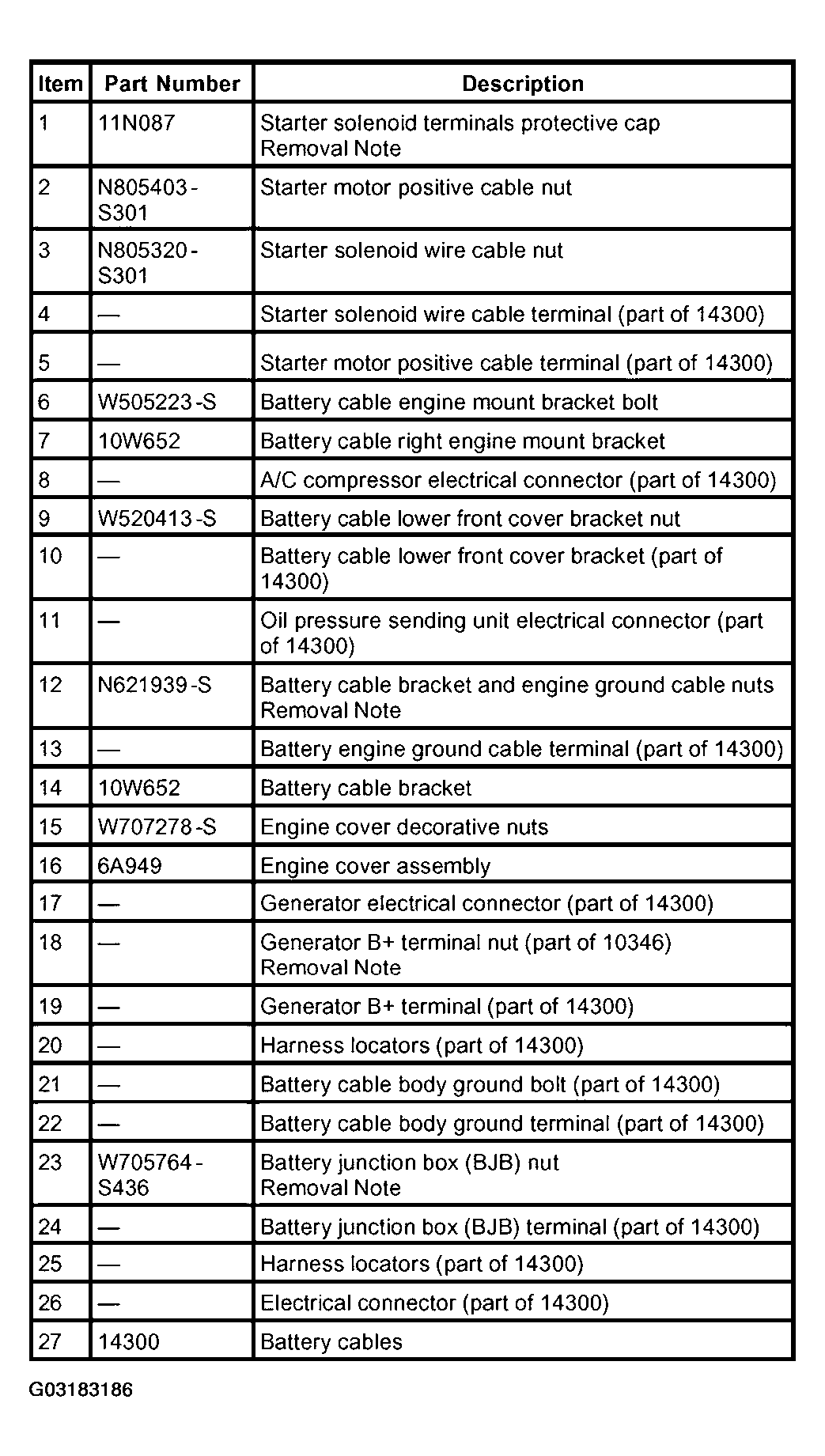

Fig 2: Identifying Removal Sequence Of Battery - 4.6L (2V) (2 Of 3)

Courtesy of FORD MOTOR CO.

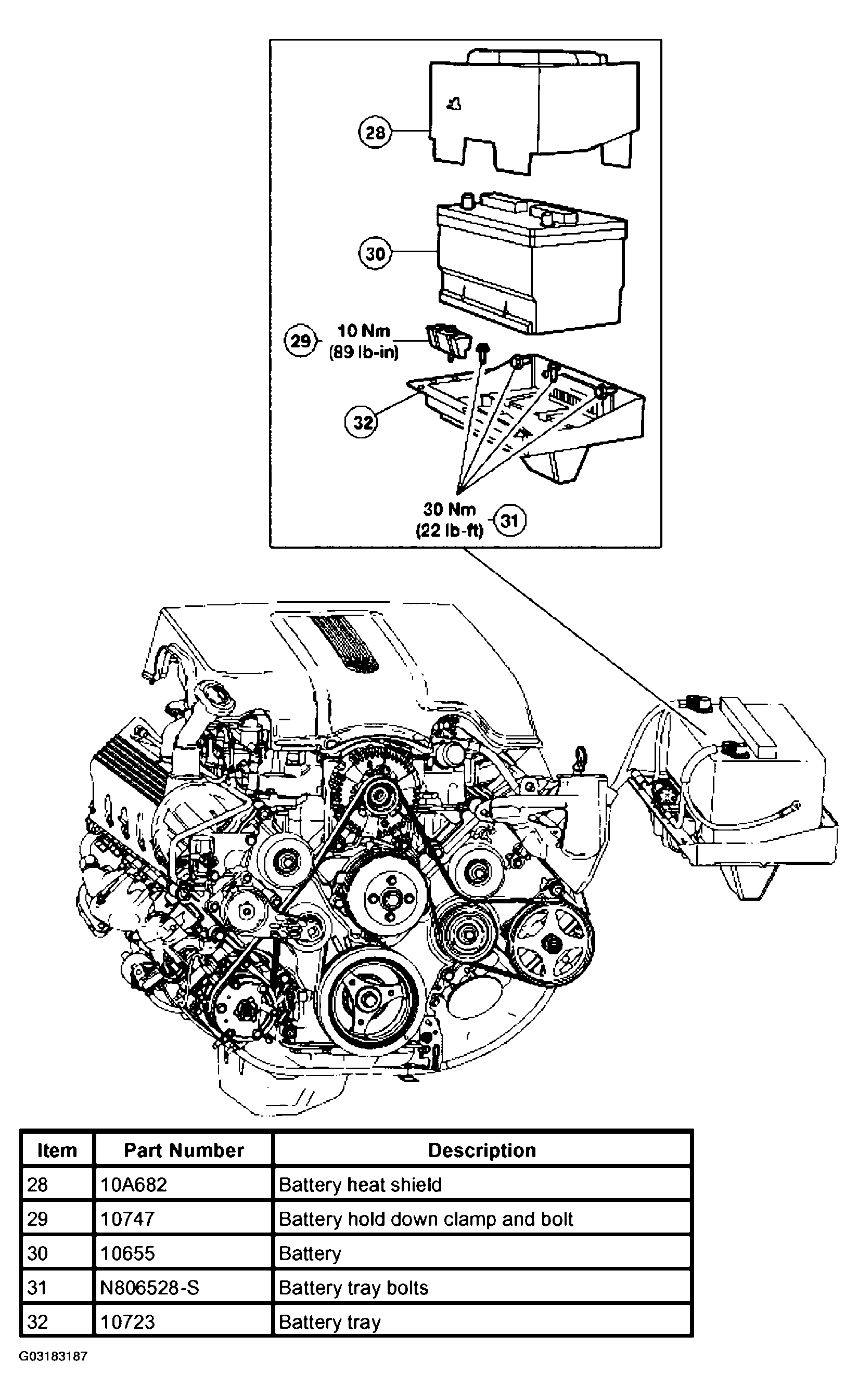

Fig 3: Identifying Removal Sequence Of Battery - 4.6L (2V) (3 Of 3)

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
