Generator C102a (4.0L vehicles built from 12/08/2003)

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

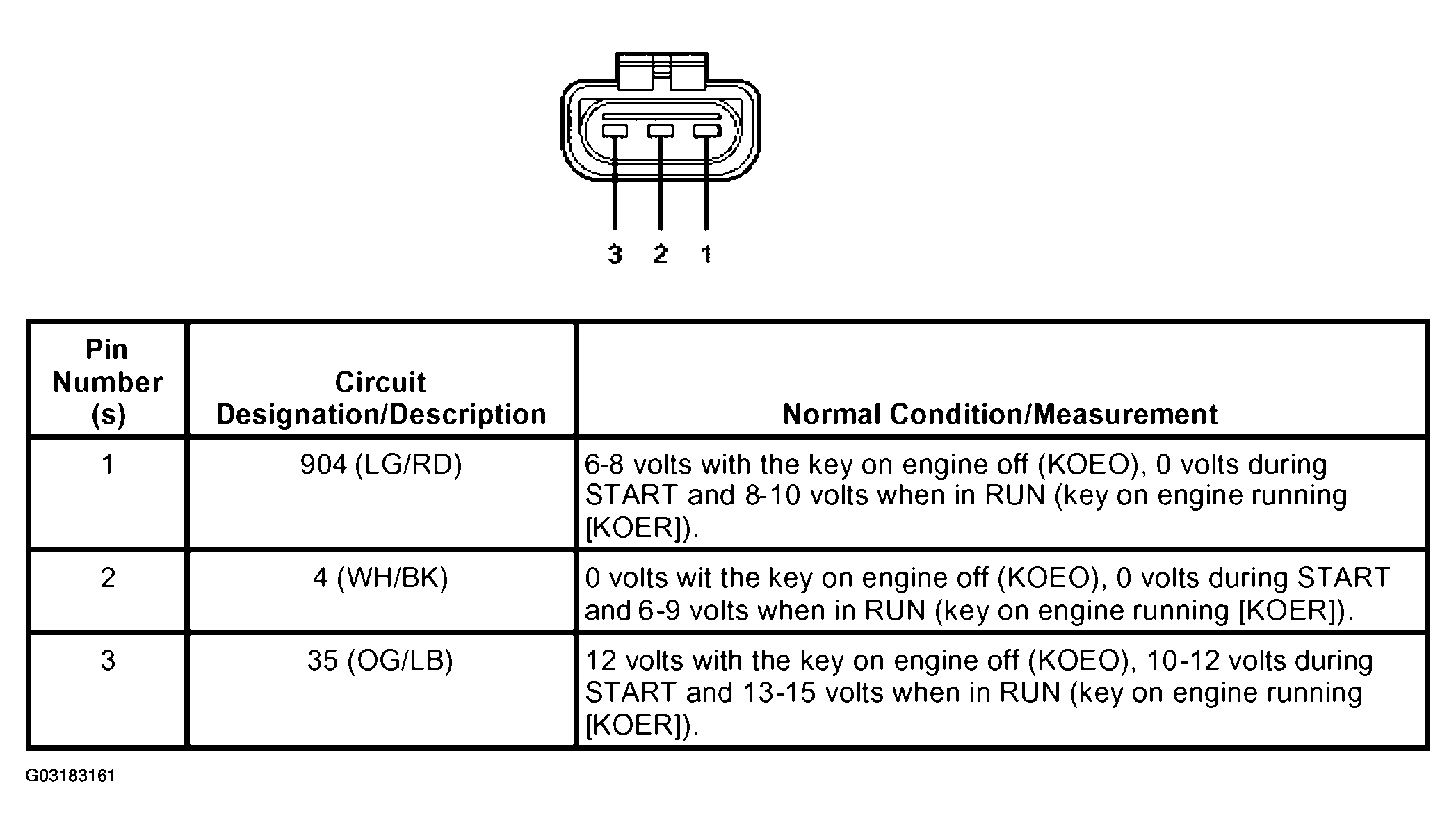

Fig 1: Identifying Generator C102A (4.0L Vehicles Built From 12/08/2003) Connector Pins
G03183161Courtesy of FORD MOTOR CO.
