Temperature Blend Door Actuator - RH, DATC

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor door vacuum control motor. For additional information, refer to VACUUM CONTROL MOTOR - FLOOR DOOR .
  2. Remove the parts in the order indicated in the following illustration and table.

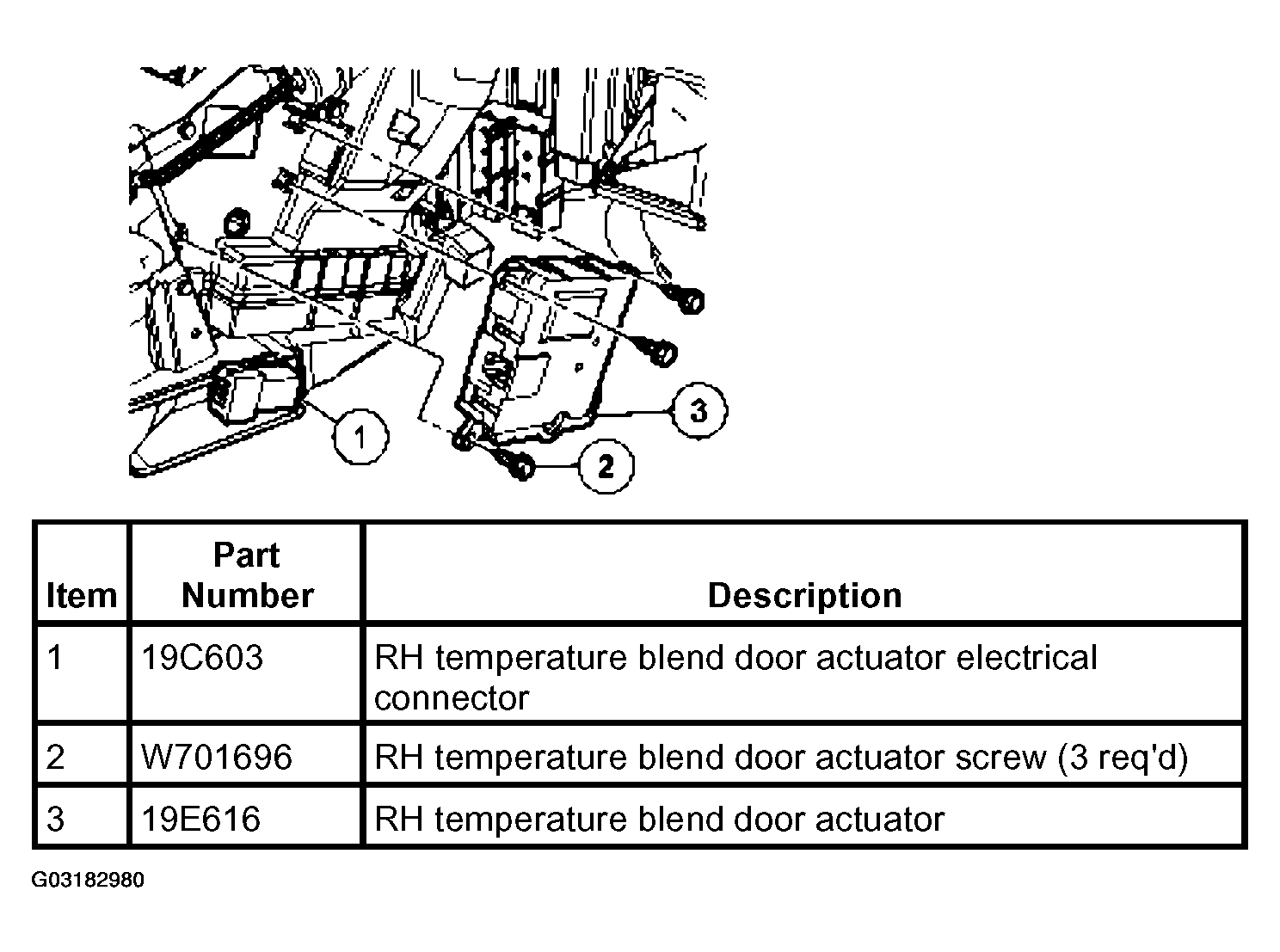

    Fig 1: Identifying Removal Sequence Of Temperature Blend Door Actuator - RH, DATC
    G03182980Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
