Temperature Blend Door Actuator - LH

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the parts in the order indicated in the following illustration and table.

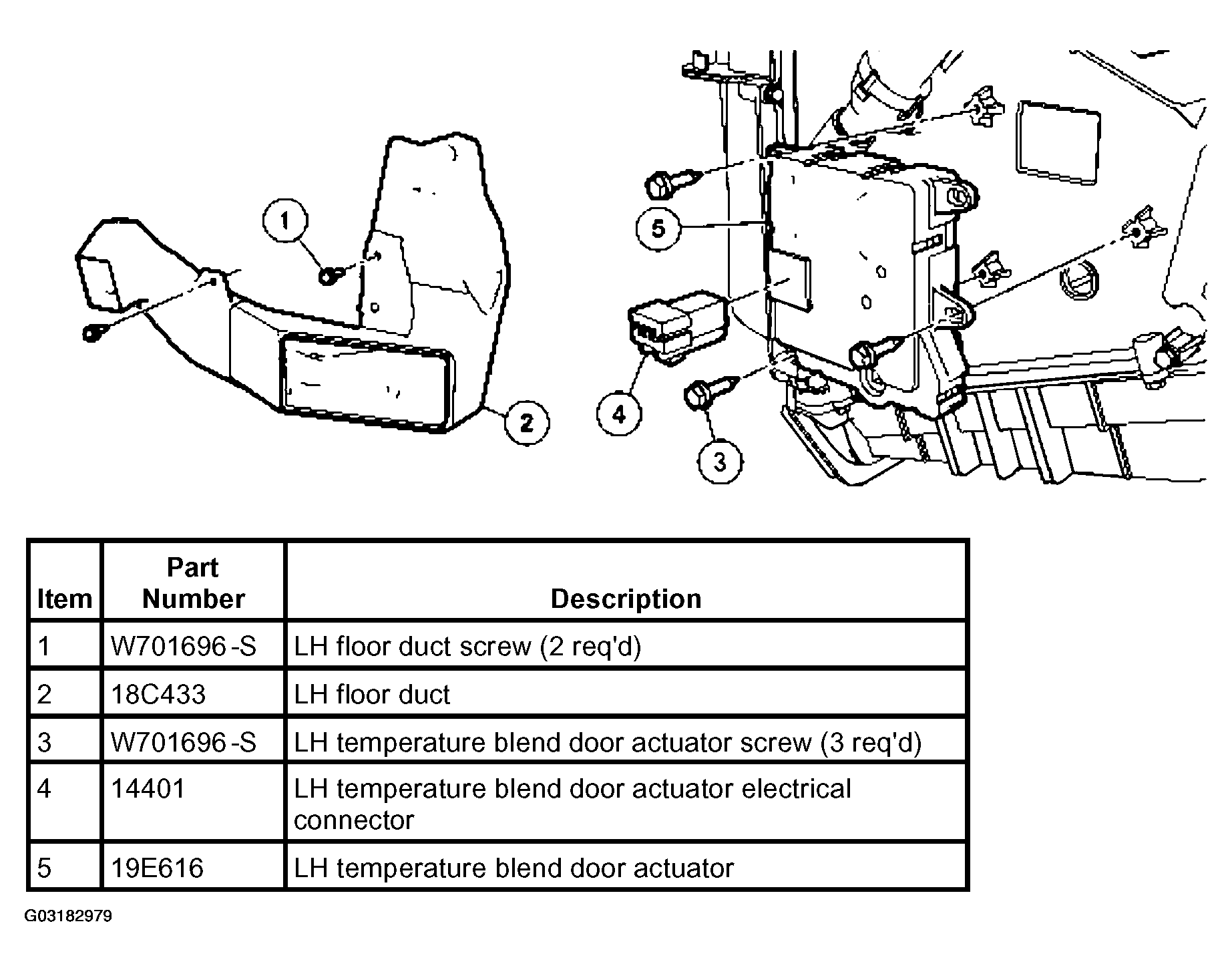

    Fig 1: Identifying Removal Sequence Of Temperature Blend Door Actuator - LH
    G03182979Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
