Item 12: A/C Clutch Nut Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C clutch nut.
    1. Using the special tool, hold the clutch plate.
    2. Remove the nut.

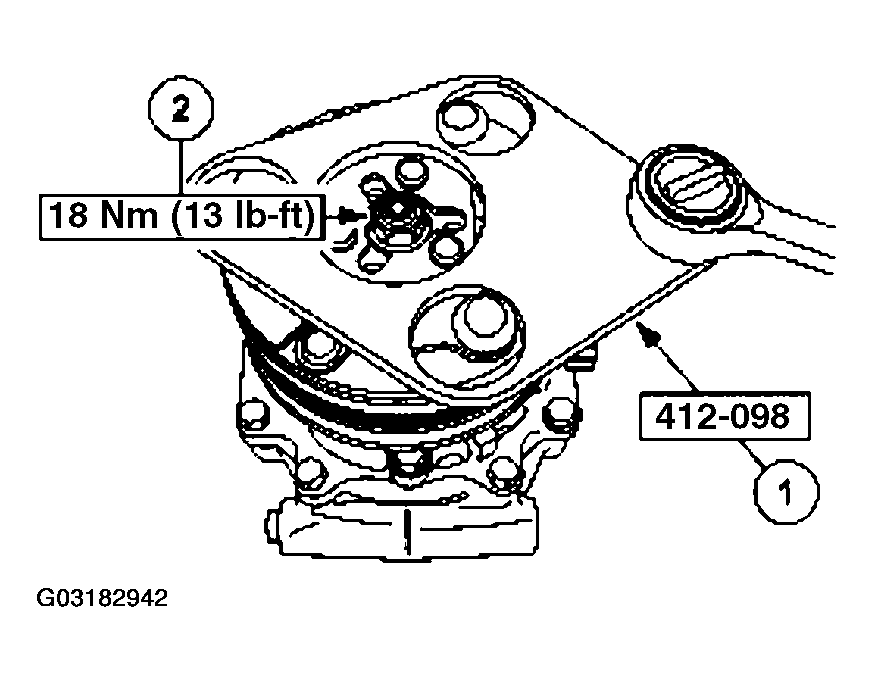

    Fig 1: Identifying Loosening Torque Of A/C Clutch Nut
    G03182942Courtesy of FORD MOTOR CO.
