Air Conditioning (A/C) Clutch Air Gap Adjustment

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the A/C clutch air gap at 3 equally spaced places between the clutch plate and the A/C clutch pulley.

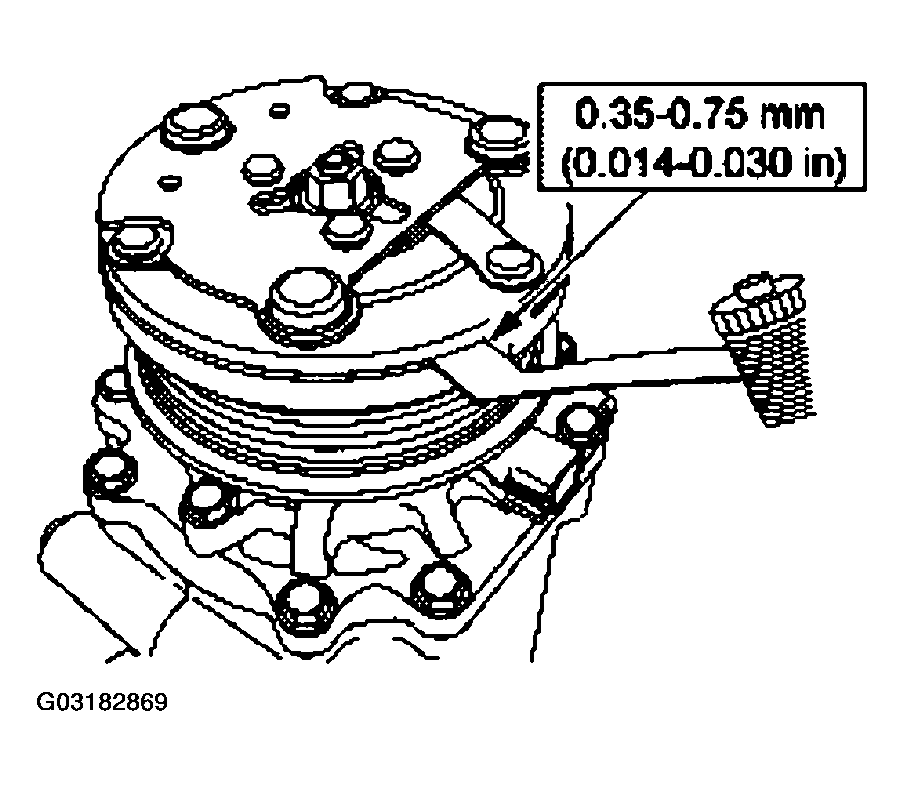

    Fig 1: Checking Air Conditioning (A/C) Clutch Air Gap
    G03182869Courtesy of FORD MOTOR CO.
  2. If the A/C clutch air gap is out of range, remove the clutch plate. Add or remove spacers between the clutch plate hub and the compressor shaft until the clearance is within specification.
