Inertia Fuel Shutoff (IFS) Switch

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in the following illustration and table.
  2. To install, reverse the removal procedure.

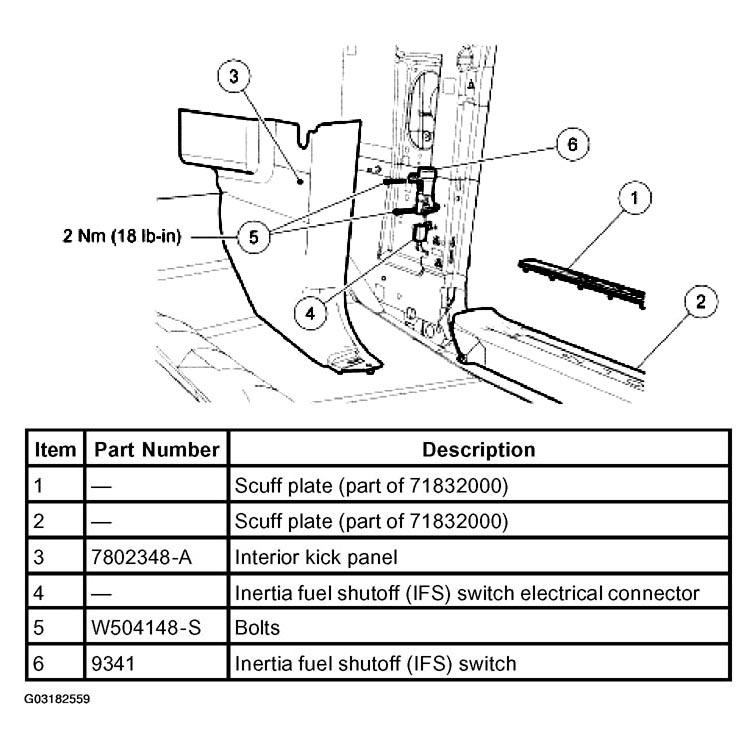

    Fig 1: Removing Inertia Fuel Shutoff (IFS) Switch
    G03182559Courtesy of FORD MOTOR CO.
