Items 26-24: Fuel Pump Module Locking Ring, Fuel Pump Module, and O-ring Seal Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the fuel pump module O-ring seal with clean engine oil prior to installation.

NOTE: The fuel pump module must be handled carefully to avoid damage to the float arm and the filter.

Install the fuel pump module.

NOTE: The fuel pump module locking ring is a cam-lock type. Turn the locking ring until it stops and is locked in place.

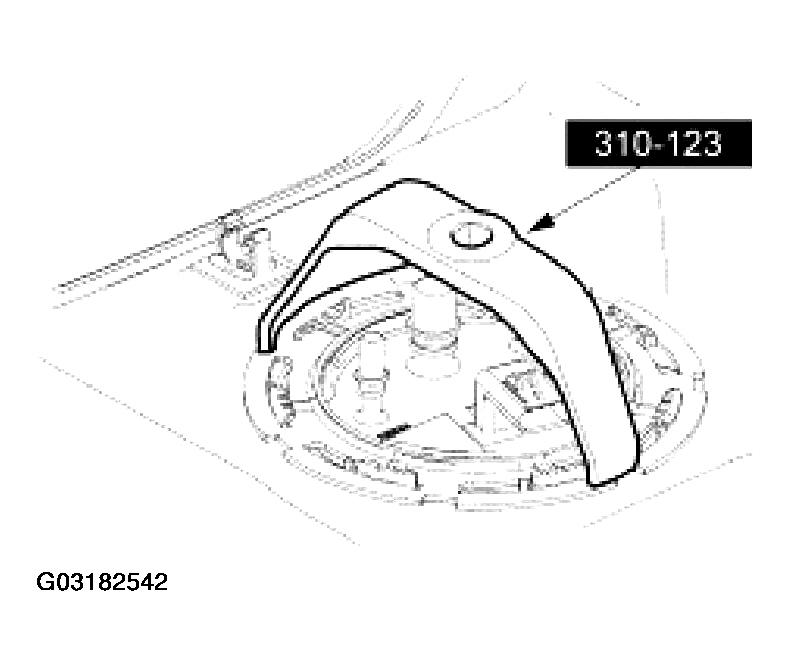

Fig 1: Installing Fuel Pump Module Locking Ring

Courtesy of FORD MOTOR CO.

Using the special tool, install the fuel pump module locking ring.
