Item 11: Fuel Supply Tube Removal Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

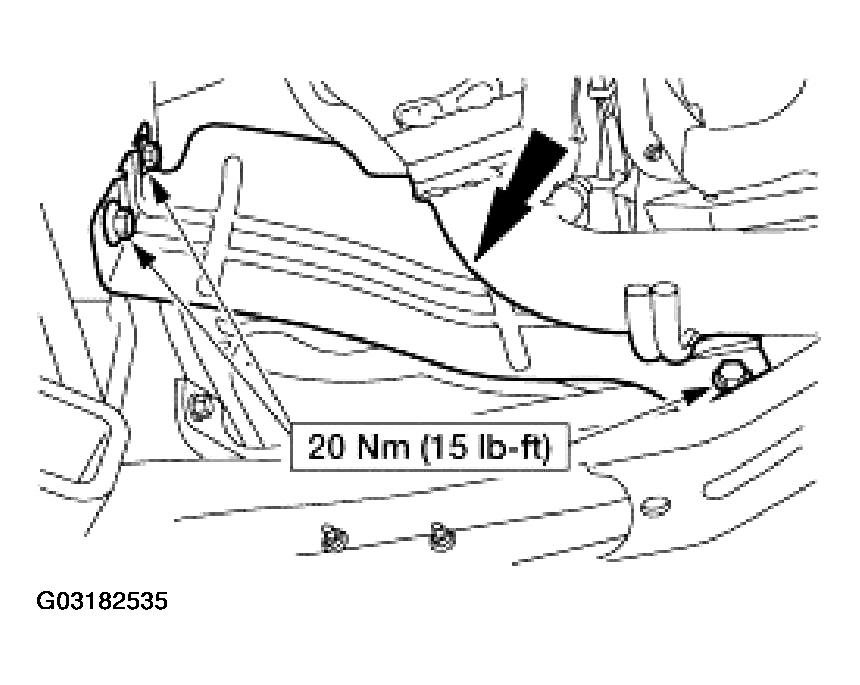

- Remove the bolts and the heat shield.

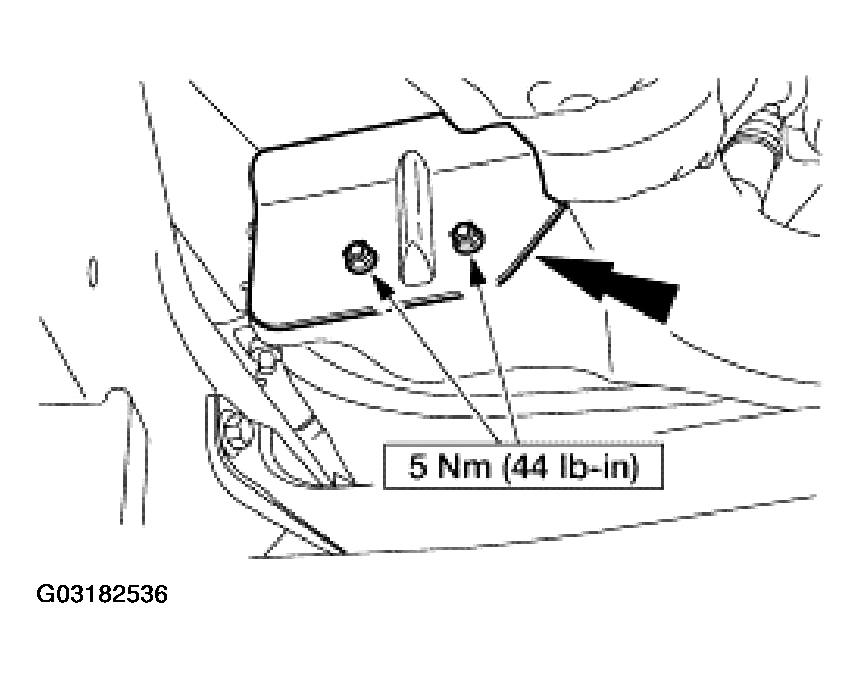

- Remove the bolts and the fuel filter shield.

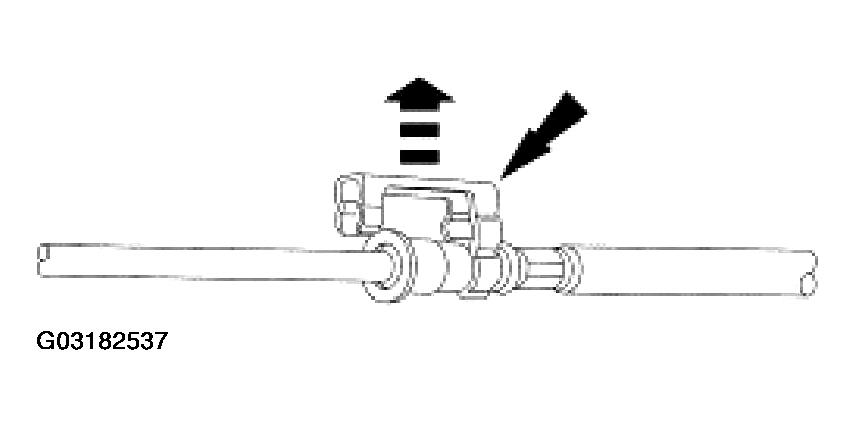

- Disconnect the safety clip.

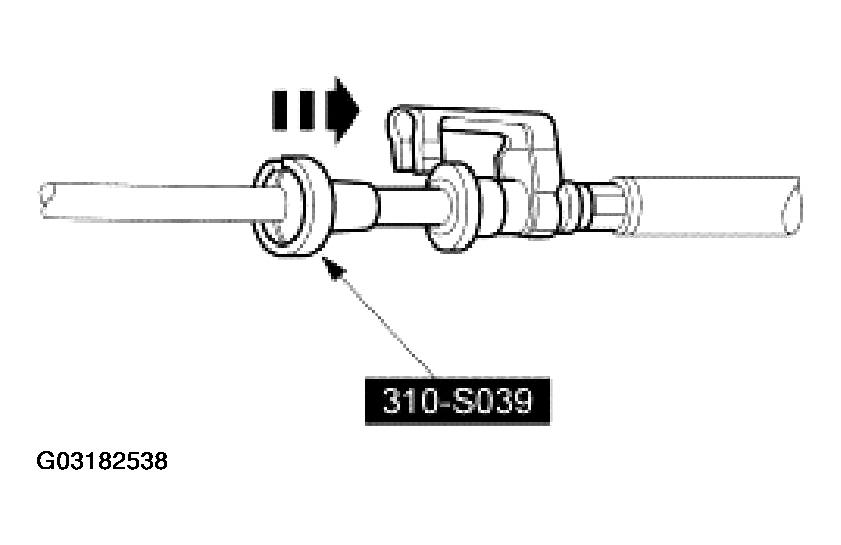

- Install the special tool and push it into the fitting.

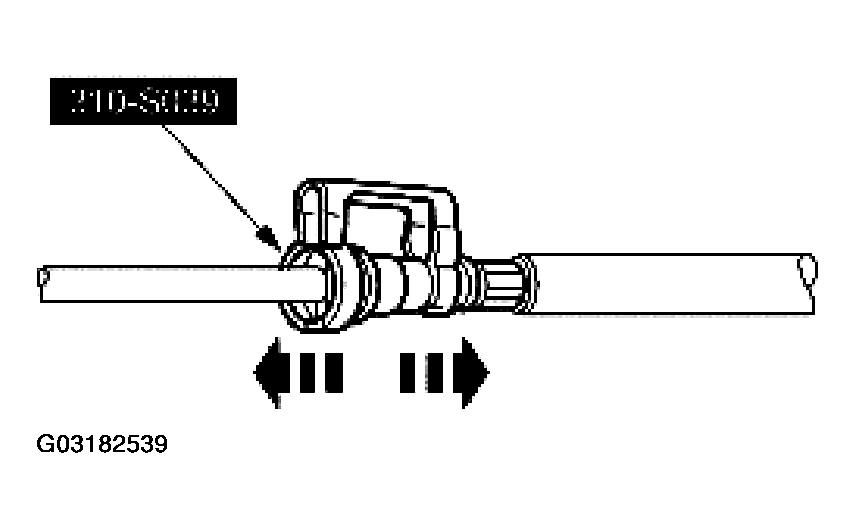

- Separate the fitting.
- Inspect the damage.
- Clean the fittings.
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
WARNING:
Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, which can cause personal injury or a fire hazard.
NOTE:
During the repair or replacement of fuel-related components, all liquid and vapor fuel openings shall be capped, taped or otherwise appropriately protected to prevent the ingress of dirt or other contamination. All caps, tape and other protective materials shall be removed prior to installation.
