Items 20 & 21: Quick-Connect Fitting Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

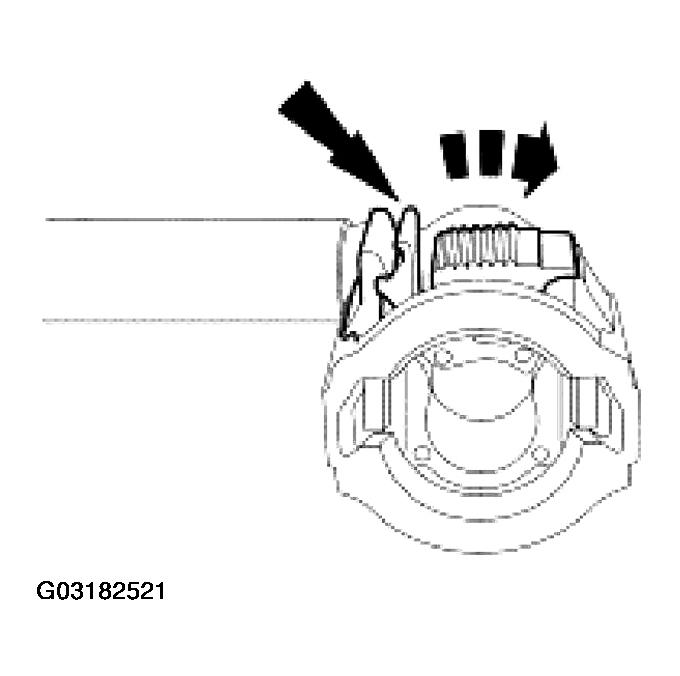

  1. Unclip the tab.
    Fig 1: Uncliping Tab
    G03182521Courtesy of FORD MOTOR CO.

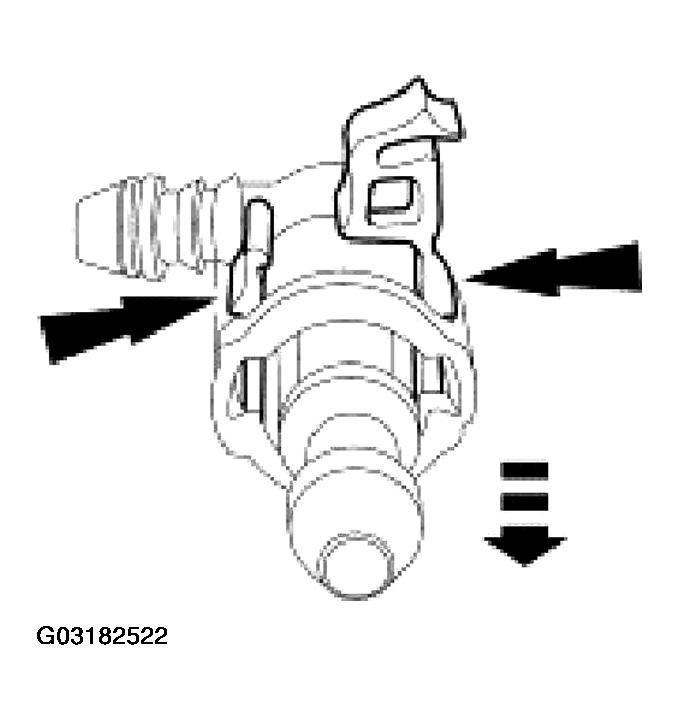

  2. Depress the tap and press the clip downward.
    Fig 2: Depressing Tap And Pressing Clip Downward
    G03182522Courtesy of FORD MOTOR CO.

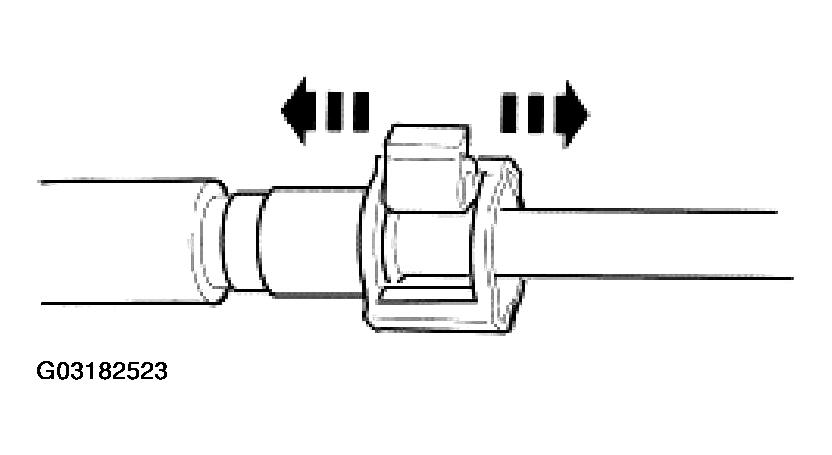

  3. Separate the fittings.
    Fig 3: Separating Fittings
    G03182523Courtesy of FORD MOTOR CO.
