Item 10: Fuel Tank Filler Pipe Assembly Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. The fuel tank filler pipe assembly is removed as a complete unit. Do not disassemble.

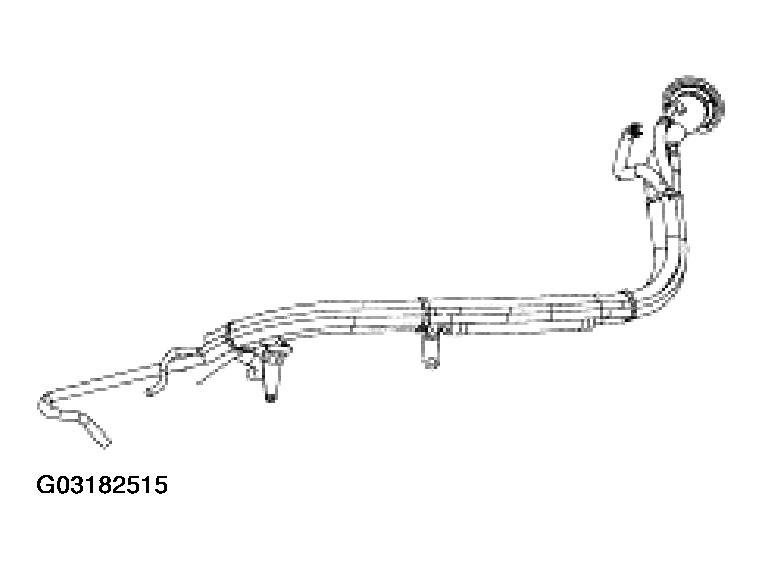

    Fig 1: Removing Fuel Tank Filler Pipe Assembly
    G03182515Courtesy of FORD MOTOR CO.
