Items 6, 5, 3 and 1: Quick-Connect Fitting Installation Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

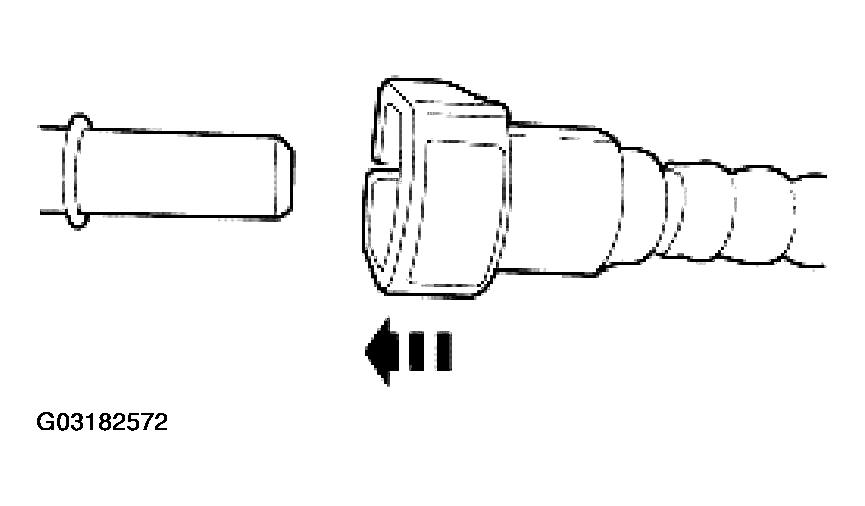

- Connect the quick-connect fitting.
CAUTION:
Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.
CAUTION:
Make sure the quick-connect fitting clicks into place when installing the tube. To make sure that the quick-connect fitting is fully seated, pull on the tube.
NOTE:
If the fuel tube retainer clip is broken or damaged, install a new clip using a suitable fuel line disconnect tool to separate the retaining clip legs. Once the retainer legs have been separated, lift the clip out of the connect housing, lifting from the stamped side of the connector body.
NOTE:
Apply clean engine oil to the end of the tube before connecting the fitting.
