Accelerator Pedal and Shaft

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: There are two accelerator pedal configurations, an adjustable accelerator pedal and a fixed accelerator pedal. The following steps cover the fixed accelerator pedal. The adjustable accelerator pedal must be serviced with the adjustable brake pedal. For additional information, refer to BRAKE SYSTEM .
  1. Disconnect the battery negative cable. For additional information, refer to BATTERY DISCONNECT .
  2. Remove the parts in the order indicated in the following illustration and table.
  3. To install, reverse the removal procedure.

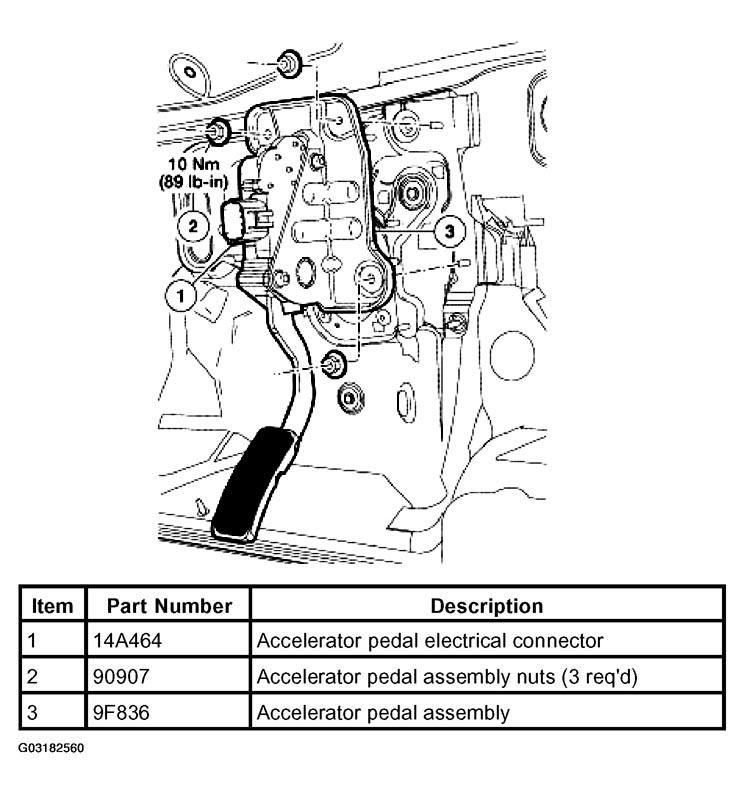

    Fig 1: Identifying Accelerator Pedal And Shaft
    G03182560Courtesy of FORD MOTOR CO.
