Item 1: Transmission Assembly Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Secure the transmission to the transmission jack with a safety chain. Failure to follow these instructions can result in personal injury.

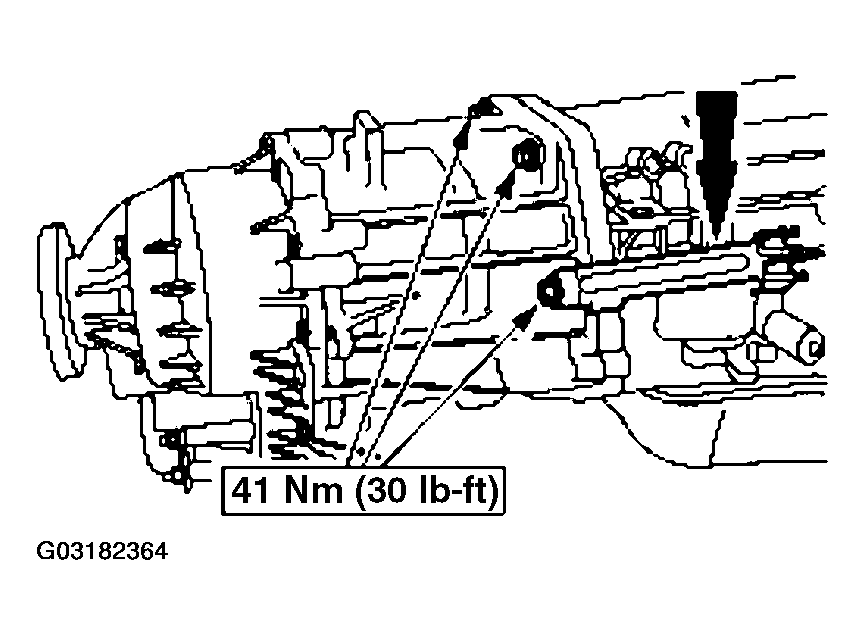

Fig 1: Installing Transfer Case To Transmission

Courtesy of FORD MOTOR CO.

If removed, install the transfer case to the back of the transmission, install the bracket and connect the vent hose.

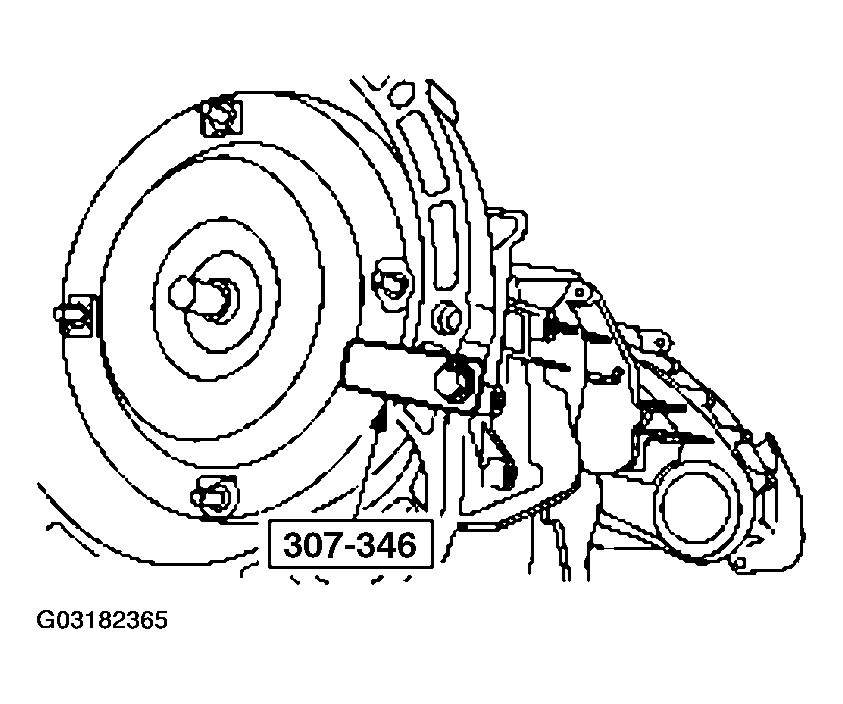

Remove the special tool.

Fig 2: Removing Special Tool
Courtesy of FORD MOTOR CO.

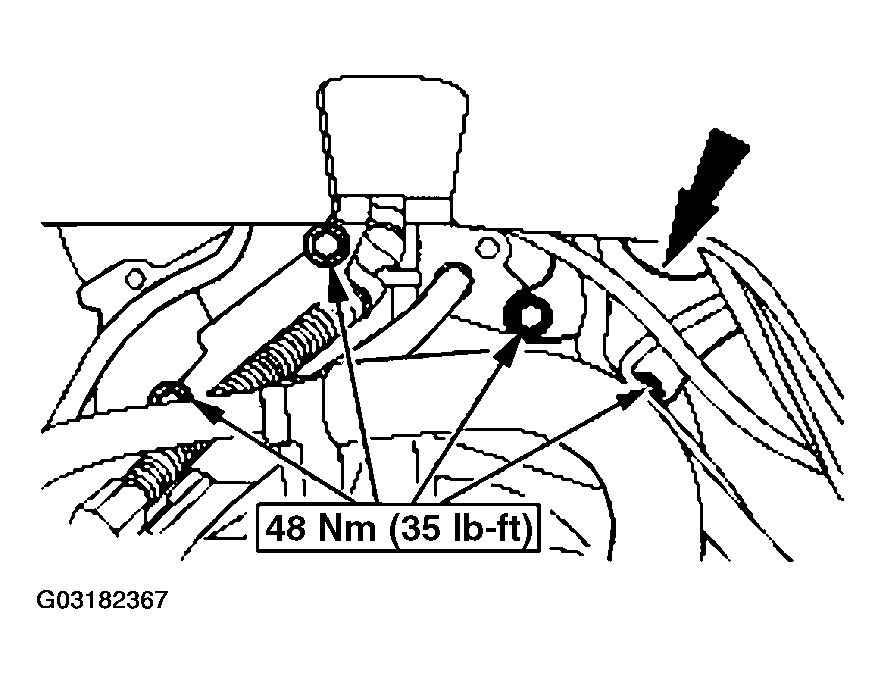

On vehicles equipped with a 4.6L engine, install the seven engine-to-transmission retaining bolts.

Fig 3: Installing Engine-To-Transmission Retaining Bolts
Courtesy of FORD MOTOR CO.

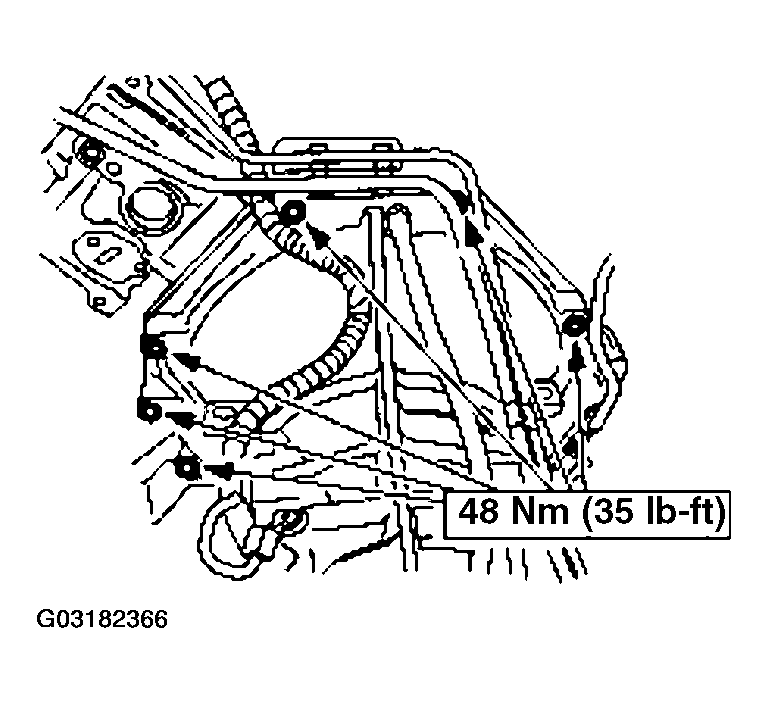

On vehicles equipped with a 4.0L engine, position the fuel line bracket in place and install the six retaining bolts.

Fig 4: Installing Retaining Bolts
Courtesy of FORD MOTOR CO.

NOTE: The RH side is shown, LH is similar.

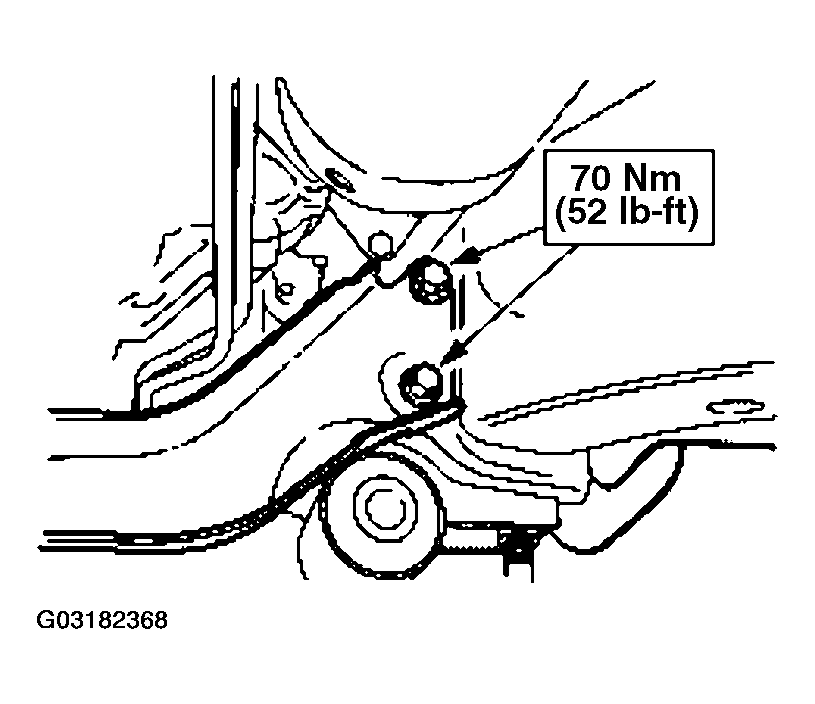

Fig 5: Installing Front Crossmember

Courtesy of FORD MOTOR CO.

Install the front crossmember.

WARNING: Make sure that the transmission and transfer case assembly are secured to the transmission jack with a safety chain. Failure to follow these instructions can result in personal injury.

NOTE: Align the flexplate-to-converter marks made during the removal procedure.

Raise and position the transmission and transfer case to the back of the engine. Remove the special tool prior to attaching the transmission to the engine.
