Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in DRIVE, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the upper and lower steering column shrouds.
  3. Remove the components in the order listed in the following illustration and table.
  4. To install, reverse the removal procedure.

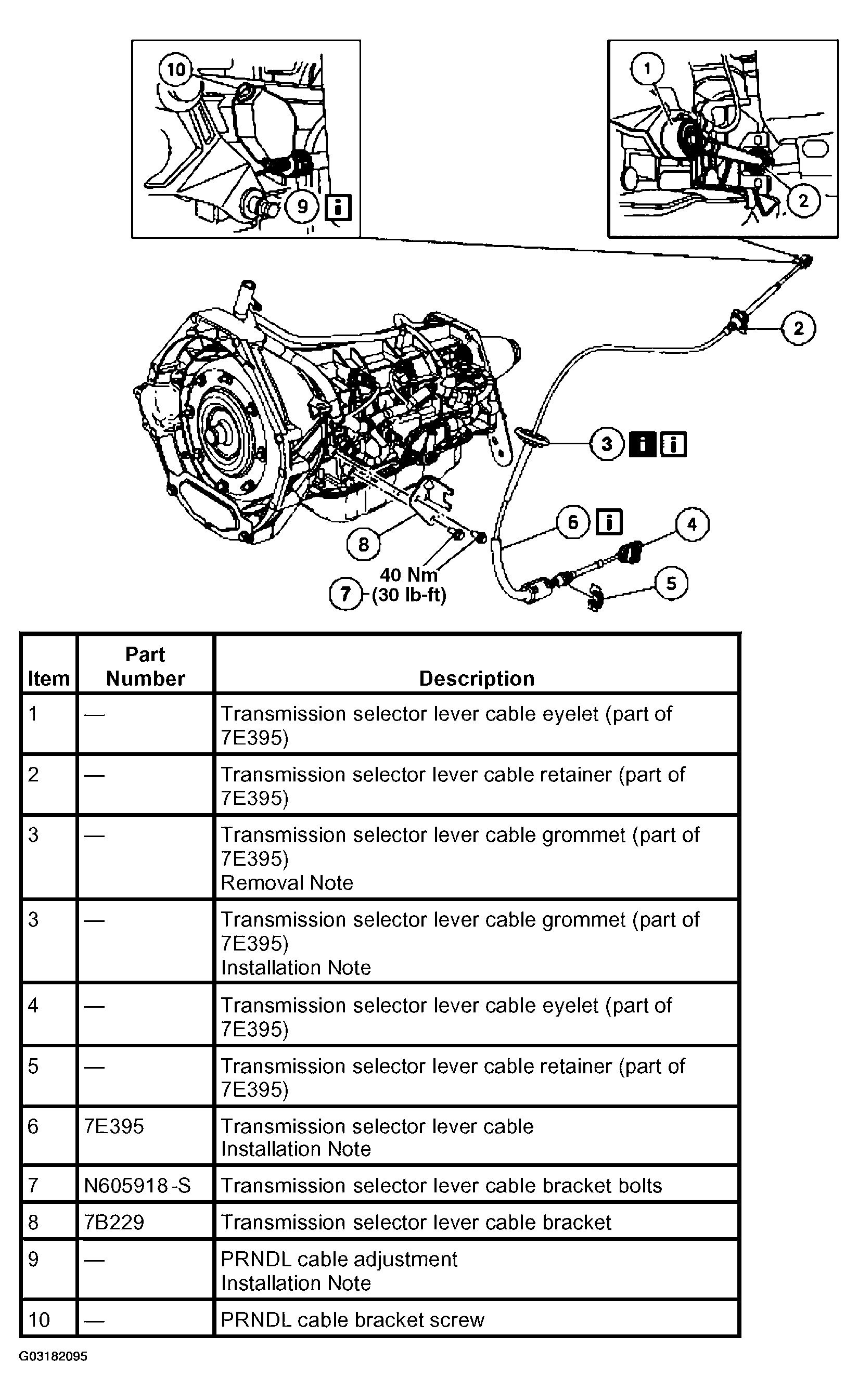

    Fig 1: Identifying Removal Order Of Transmission Selector Cable
    G03182095Courtesy of FORD MOTOR CO.
