Items 8, 9 and 10: Solenoid Body and Screws Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Inspect the transmission case bore to make sure it is free of foreign material and not damaged. If it is damaged, transmission leak may occur.

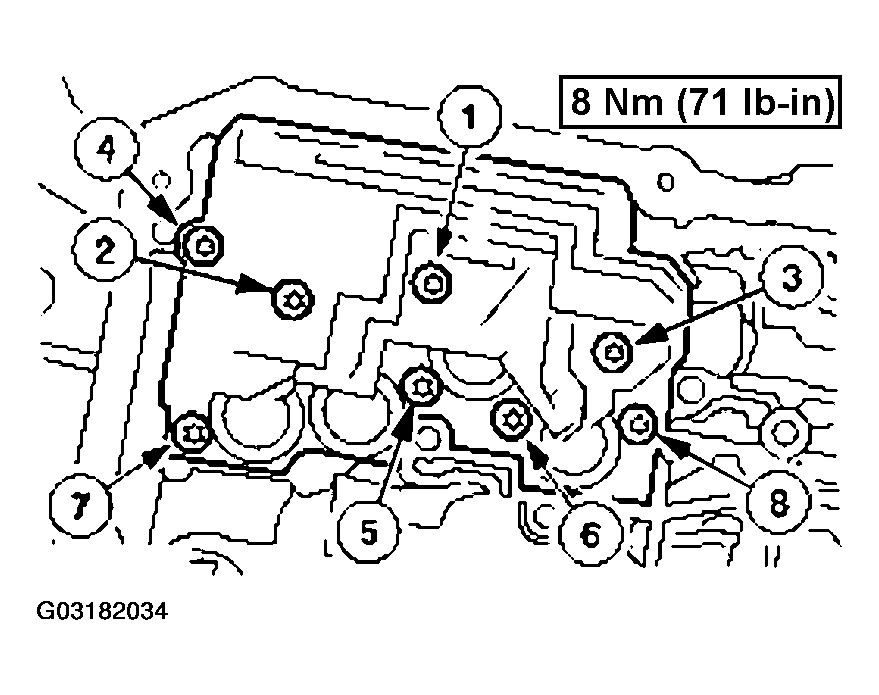

    Fig 1: Identifying Solenoid Body Screw Tightening Sequence
    G03182034Courtesy of FORD MOTOR CO.
  1. Install the solenoid body. Tighten the screws in sequence shown.
