Item 3: Transmission Fluid Pan Screws Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the screws in a crisscross sequence.

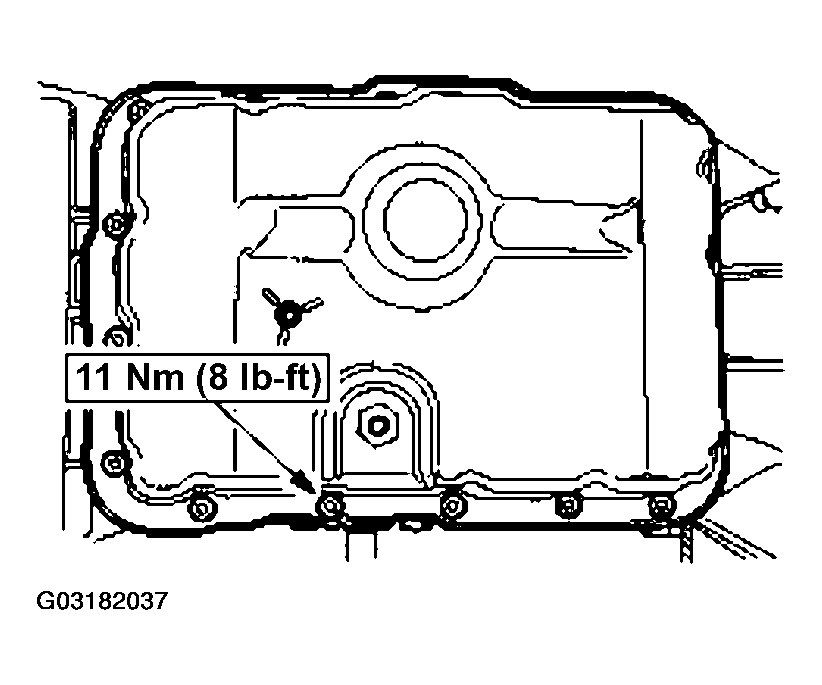

    Fig 1: Tightening Transmission Fluid Pan Screws
    G03182037Courtesy of FORD MOTOR CO.
